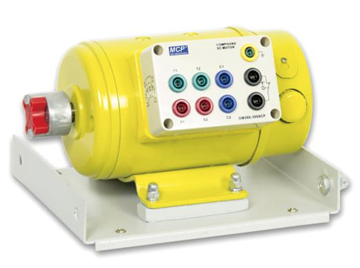

DM300-3000CP COMPOUND DC MOTOR
BDT 41,671/-
Product Details
Brand: MCP
Model: DM300-3000CP
Country Of Origin: China
Main Advantages
Compound winding for balanced torque and speed
High-speed 3000rpm performance
Variable speed via 0~220VDC armature
Stable 220VDC excitation
Compact and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | Compound DC Motor |
| Armature Voltage: | 0~220VDC |
| Excitation Voltage: | 220VDC |
| Max. Armature Current: | 1.8A |
| Excitation Current: | 0.11A |
| Max. Output Power: | 300W |
| Max. Rotate Speed: | 3000rpm |
| Shaft Height: | 75mm |
| Dimensions: | 240 x 180 (190) x 140 mm |
| Weight: | 8.5kg |
The MCP DM300-3000CP Compound DC Motor is a high-speed, industrial-grade DC motor designed for applications requiring a balance of high starting torque and stable speed regulation. Ideal for industrial, commercial, and educational applications, it features compound winding construction, combining both series and shunt field windings for optimal performance. The DM300-3000CP operates on an armature voltage of 0~220VDC and a fixed excitation voltage of 220VDC, with a maximum armature current of 1.8A and an excitation current of 0.11A. It delivers a maximum output power of 300W and a high maximum rotate speed of 3000rpm. The motor features a 75mm shaft height and compact dimensions of 240 x 180 (190) x 140 mm, weighing 8.5kg, with clearly labeled terminals (T1, T2, E1, E2) for straightforward wiring.
MCP DM300-3000CP Compound DC Motor – 300W, 3000rpm, 220VDC
Power your equipment with high-speed versatility and precision using the MCP DM300-3000CP, a compound DC motor designed for balanced torque and speed regulation. Ideal for industrial, commercial, and educational applications, this motor combines series and shunt field windings with a compact, durable design.
Key Features & Benefits:
-
Compound Winding Design: Combines series and shunt field windings for a balance of high starting torque and stable speed regulation.
-
High-Speed Performance: Delivers a maximum output power of 300W with a high rotate speed of 3000rpm.
-
Variable Speed Control: Operates on a 0~220VDC armature voltage with a fixed 220VDC excitation voltage for smooth, adjustable speed control.
-
Reliable Output: Maximum armature current of 1.8A and excitation current of 0.11A.
-
Compact & Robust Design: Features a 75mm shaft height and dimensions of 240 x 180 (190) x 140 mm, weighing 8.5kg.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, E1, E2) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
