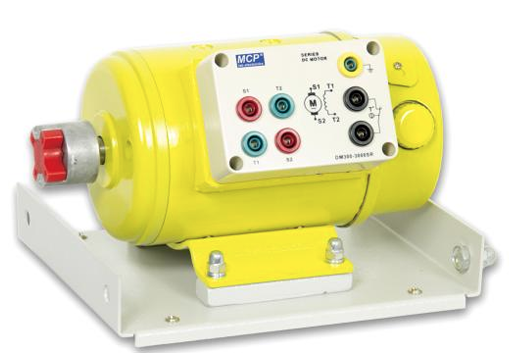

DM300-3000SR SERIES DC MOTOR
BDT 39,116/-
Product Details
Brand: MCP
Model: DM300-3000SR
Country Of Origin: China
Main Advantages
Series winding for high starting torque
High-speed 3000rpm performance
Powerful 300W output
Variable speed via 0~220VDC
Compact and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | Series DC Motor |
| Armature & Excitation Voltage: | 0~220VDC |
| Max. Armature & Excitation Current: | 2.2A |
| Max. Output Power: | 300W |
| Max. Rotate Speed: | 3000rpm |
| Shaft Height: | 75mm |
| Dimensions: | 240 x 180 (190) x 140 mm |
| Weight: | 8kg |
The MCP DM300-3000SR Series DC Motor is a high-speed, industrial-grade DC motor designed for reliable performance and high starting torque. Ideal for industrial, commercial, and educational applications, it features series winding construction for robust operation under heavy loads. The DM300-3000SR operates on an armature and excitation voltage of 0~220VDC, with a maximum armature and excitation current of 2.2A. It delivers a maximum output power of 300W and a high maximum rotate speed of 3000rpm. The motor features a 75mm shaft height and compact dimensions of 240 x 180 (190) x 140 mm, weighing 8kg, with clearly labeled terminals (T1, T2, and others) for straightforward wiring.
MCP DM300-3000SR Series DC Motor – 300W, 3000rpm, 220VDC
Power your equipment with high-speed, high-torque performance using the MCP DM300-3000SR, a series DC motor designed for reliable operation and robust load handling. Ideal for industrial, commercial, and educational applications, this motor combines series winding construction with a compact, durable design.
Key Features & Benefits:
-
Series Winding Design: Provides high starting torque and stable operation under heavy loads.
-
High-Speed Performance: Delivers a maximum output power of 300W with a high rotate speed of 3000rpm.
-
Reliable Output: Maximum armature and excitation current of 2.2A.
-
Variable Speed Control: Operates on 0~220VDC for both armature and excitation for smooth, adjustable speed control.
-
Compact & Robust Design: Features a 75mm shaft height and dimensions of 240 x 180 (190) x 140 mm, weighing 8kg.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
