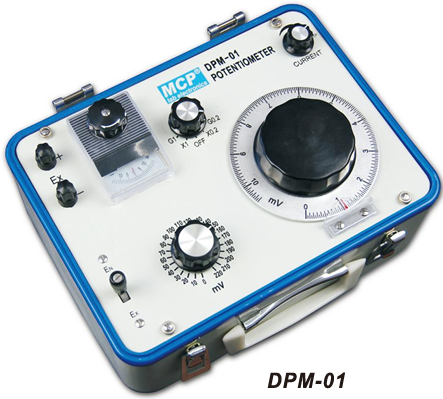

DPM-01 DC POTENTIOMETER
BDT 35,267/-
Product Details
Brand: MCP
Model: DPM-01
Country Of Origin: China
Features
-
Precise measurement of DC potential or voltage
-
Standard DC potential output for thermal instrumentation calibration
-
Calibrates thermocouples and secondary thermal instrumentation
-
Measures DC current and resistance with standard resistor
-
Two measuring ranges: 0 ~ 230 mV, 0 ~ 46 mV
-
Null measuring method with built‑in galvanometer
-
One multiplier and two measuring dials
-
Guarding and shielding with portable metal case
| Electrical Characteristics Measuring dials: | one stepper (0 ~ 220 mV, 22 steps), one linearity dial (0 ~ 10 mV) |
| Multiplier (x1) Measuring Range/ Resolution / Working Current / Accuracy | 0 ~ 230 mV / 50 µV / 5 mA / 0.1% |
| Multiplier (x0.2) Measuring Range/ Resolution / Working Current / Accuracy | 0 ~ 46 mV / 10 µV / 1 mA / 0.1% |
| Multiplier (G1) Measuring Range/ Resolution / Working Current / Accuracy | 0 ~ 230 mV / 50 µV / 5 mA / 0.1% |
| Multiplier (G0.2) Measuring Range/ Resolution / Working Current / Accuracy | 0 ~ 46 mV / 10 µV / 1 mA / 0.1% |
| Working power source: | 1.5 V DC |
| Reference voltage source: | 9 V (6F22) |
| Galvanometer sensitivity: | 0.6 µA/div. |
| Operating temperature: | 5 ~ 35 ℃ |
| Humidity: | max. 85% relative |
| Dimensions: | 285 × 140 × 215 mm |
| Weight: | 2.5 kg |
The DPM‑01 DC Potentiometer is a versatile instrument for precise DC potential and voltage measurement. Featuring two ranges (0 ~ 230 mV and 0 ~ 46 mV) with resolutions down to 10 µV, it ensures 0.1% accuracy. Equipped with a built‑in galvanometer and null measuring method, it simplifies calibration tasks for thermocouples and secondary instrumentation. The portable metal case provides shielding and durability, making it suitable for schools, universities, and professional labs. Widely used in electrical engineering education and calibration facilities, the DPM‑01 is an essential tool for accurate DC measurement and circuit testing.
The DPM‑01 DC Potentiometer is a precision portable instrument designed for accurate DC potential and voltage measurement. With ranges up to 230 mV and built‑in galvanometer, it supports null measurement methods for high accuracy. The device also provides standard DC potential output for calibrating thermocouples and secondary thermal instrumentation. Compact and shielded in a portable metal case, the DPM‑01 is ideal for laboratories, universities, and calibration facilities requiring dependable DC measurement and calibration.
