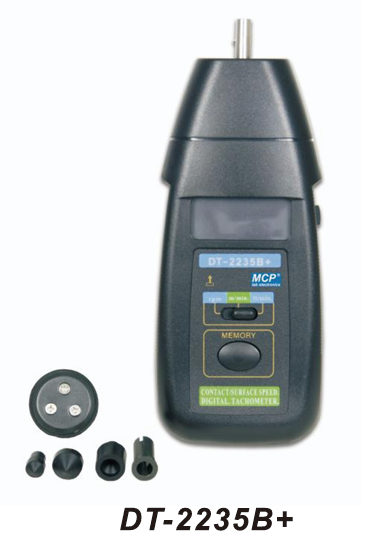

DT-2235B+ Contact-Type Digital Tachometer
BDT 3,235/-
Product Details
Brand: MCP
Model: DT-2235B+
Country Of Origin: China
Features:
Wide measuring range and high resolution
Photoelectric and contact measuring
Max. value, Min. value and last value memory
Low battery indication
| Contact Rotation Range: | 0.5~19999 RPM |
| Contact Line Speed Range: | 0.5~1999.9 m/min |
| Accuracy: | ±(0.05% +1) |
| Sampling Time: | 0.5s (over 120 RPM) |
| Time Base: | 6MHz Quartz crystal |
| Max. Display: | 99999 |
| LCD Size: | 5 digits, 18mm |
| Power Supply: | 4×1.5V AA |
| Dimensions: | 190 mm×72 mm×37 mm |
| Weight: | 0.5kg |
The MCP DT-2235B+ Contact-Type Digital Tachometer is a specialized, high-precision instrument designed for accurate contact measurement of rotational and linear speed. As part of the DT Series, it is ideal for industrial maintenance, machinery diagnostics, and laboratory testing where direct contact measurement is required. The DT-2235B+ measures contact rotation speeds from 0.5 to 19999 RPM and contact line speed from 0.5 to 1999.9 m/min, both with exceptional accuracy of ±(0.05% +1). It features auto range selection, a fast 0.5s sampling time, and a memory function for Max, Min, and Last values. The device includes a yellow-green backlit 5-digit LCD (18mm) for clear readings and is powered by 4×1.5V AA batteries. It comes complete with a contact wheel and rubber/metal contact tips, measures 190 x 72 x 37 mm, and weighs 0.5kg.
MCP DT-2235B+ Contact-Type Digital Tachometer – High Precision RPM & Line Speed Meter
Measure rotational and linear speed with exceptional precision using the MCP DT-2235B+, a professional-grade contact-type digital tachometer designed for accuracy and reliability. As a key model in the DT Series, this instrument is ideal for engineers, technicians, and maintenance professionals working with motors, machinery, and industrial equipment where direct contact measurement is preferred.
Key Features & Benefits:
-
Dedicated Contact Measurement: Specifically designed for contact-type measurement of rotational and linear speed.
-
Wide Measuring Range:
-
Contact Rotation Speed: 0.5~19999 RPM
-
Contact Line Speed: 0.5~1999.9 m/min
-
-
High Accuracy: Delivers reliable readings with ±(0.05% +1) accuracy across all measurement modes.
-
High Resolution: Provides 0.1 RPM resolution for low speeds and 1 RPM for higher speeds, plus 0.01 m/min resolution for line speed.
-
Memory Function: Stores Max, Min, and Last value readings for convenient reference.
-
Fast Sampling: 0.5s sampling time (over 120 RPM) with auto range selection.
-
Clear Display: Features a 5-digit, 18mm LCD with yellow-green backlight for easy reading in any lighting.
-
Complete Kit: Includes contact wheel and rubber/metal contact tips for versatile measurement.
