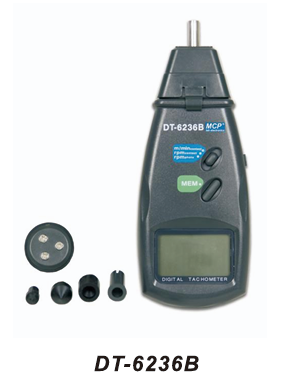

DT-6236B DIGITAL TACHOMETER
BDT 4,853/-
Product Details
Brand: MCP
Model: DT-6236B
Country Of Origin: China
Features:
Wide measuring range and high resolution
Both photoelectric and contact measuring (DT-6236B)
Max. value, Min. value and last value memory
Low battery indication
| Photoelectric Range: | 2.5~99999 RPM |
| Contact Rotation Range: | 0.5~19999 RPM |
| Contact Line Speed Range: | 0.05~1999.9 m/min |
| Accuracy: | ±(0.05% +1) |
| Sampling Time: | 0.5s (over 120 RPM) |
| Effective Distance: | 50mm~250mm |
| Time Base: | 6MHz Quartz crystal |
| Max. Display: | 99999 |
| LCD Size: | 5 digits, 18mm |
| Power Supply: | 4×1.5V AA or external 6VDC |
| Dimensions: | 160 mm×72 mm×37 mm |
| Weight: | 0.5kg |
The MCP DT-6236B Digital Tachometer is a versatile, high-precision instrument designed for both photoelectric (non-contact) and contact rotational speed measurement. As part of the DT Series, it offers a wide measuring range with high resolution, making it ideal for industrial maintenance, machinery diagnostics, and laboratory testing. The DT-6236B measures photoelectric rotation speeds from 2.5 to 99999 RPM and contact rotation speeds from 0.5 to 19999 RPM, plus contact line speed from 0.05 to 1999.9 m/min, all with exceptional accuracy of ±(0.05% +1). It features auto range selection, a fast 0.5s sampling time, and a memory function for Max, Min, and Last values. The device includes a yellow-green backlit 5-digit LCD (18mm) for clear readings, low battery indication, and is powered by either 4×1.5V AA batteries or an external 6VDC supply. It comes complete with reflective tape and contact tips, measures 160 x 72 x 37 mm, and weighs 0.5kg.
MCP DT-6236B Digital Tachometer – Photoelectric & Contact RPM Meter
Measure rotational and linear speed with exceptional precision using the MCP DT-6236B, a professional-grade digital tachometer designed for versatility and accuracy. As a key model in the DT Series, this instrument is ideal for engineers, technicians, and maintenance professionals working with motors, machinery, and industrial equipment.
Key Features & Benefits:
-
Dual Measurement Modes: Supports both photoelectric (non-contact) and contact measurement for versatile applications.
-
Wide Measuring Range:
-
Photoelectric Rotation Speed: 2.5~99999 RPM
-
Contact Rotation Speed: 0.5~19999 RPM
-
Contact Line Speed: 0.05~1999.9 m/min
-
-
High Accuracy: Delivers reliable readings with ±(0.05% +1) accuracy across all measurement modes.
-
High Resolution: Provides 0.1 RPM resolution for low speeds and 1 RPM for higher speeds, plus 0.01 m/min resolution for line speed.
-
Memory Function: Stores Max, Min, and Last value readings for convenient reference.
-
Fast Sampling: 0.5s sampling time (over 120 RPM) with auto range selection.
-
Clear Display: Features a 5-digit, 18mm LCD with yellow-green backlight for easy reading in any lighting.
-
Low Battery Indication: Alerts user when battery replacement is needed.
-
Flexible Power: Operates on 4×1.5V AA batteries or an external 6VDC supply.
