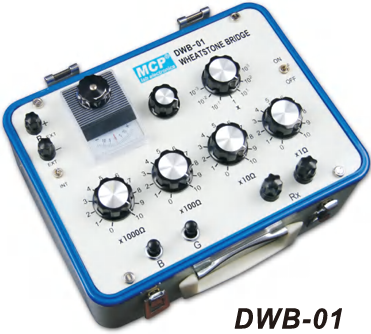

DWB-01 WHEATSTONE BRIDGE
BDT 28,605/-
Product Details
Brand: MCP
Model: DWB-01
Country Of Origin: China
Features
-
Wide measuring range: 1 Ω to 10 MΩ
-
Built‑in galvanometer and bridge power source
-
Null measuring method
-
One multiplier and four measuring arms
-
Guarding and shielding with portable metal case
| Electrical Characteristics Measuring range: | 1 Ω ~ 11.11 MΩ |
| Electrical Characteristics Measuring arms: | four decades (1000 Ω × 10 + 100 Ω × 10 + 10 Ω × 10 + 1 Ω × 10) |
| Multiplier (×0.001) Measuring Range / Accuracy / Bridge power source | 1 ~ 11.11 Ω / 0.5%/0.5%*/ Internal battery 3 V / External 4.5 V |
| Multiplier (×0.01) Measuring Range/ Accuracy/ Bridge power source | 10 ~ 111.1 Ω / 0.2%/0.2%* / Internal battery 3 V / External 4.5 V |
| Multiplier (×0.1) Measuring Range/ Accuracy/ Bridge power source | 100 ~ 1111 Ω / 0.1%/0.1%* / Internal battery 3 V / External 4.5 V |
| Multiplier (×1) Measuring Range/ Accuracy/ Bridge power source | 1k ~ 5k Ω / 0.1%/0.1%* / Internal battery 3 V / External 4.5 V |
| Multiplier (x1) Measuring Range/ Accuracy/ Bridge power source | 5k ~ 11.11k Ω / 0.2%/0.1%* / Internal battery 3 V / External 4.5 V |
| Multiplier (x10) Measuring Range/ Accuracy/ Bridge power source | 10k ~ 50k Ω / 0.1%/0.1%* / Internal battery 3 V / External 4.5 V |
| Multiplier (x10) Measuring Range/ Accuracy/ Bridge power source | 50k ~ 111.1k Ω / 1%/0.1%* / Internal battery 3 V / External 4.5 V |
| Multiplier (x100) Measuring Range/ Accuracy/ Bridge power source | 100k ~ 500k Ω / 2%/0.2%* / Internal battery 3 V / External 15 V |
| Multiplier (x100) Measuring Range/ Accuracy/ Bridge power source | 500k ~ 1111k Ω / 5%/0.2%* / Internal battery 3 V / External 15 V |
| Multiplier (x1000) Measuring Range/ Accuracy/ Bridge power source | 1M ~ 11.11M Ω / 20%/0.5%* / Internal battery 3 V / External 15 V |
The DWB‑01 Wheatstone Bridge is a versatile instrument for precise resistance measurement and calibration. Covering a wide range from 1 Ω to 11.11 MΩ, it employs the null measuring method for high accuracy. Equipped with a built‑in galvanometer and bridge power source, it simplifies laboratory and field operations. The portable metal case ensures shielding and durability, making it suitable for schools, universities, and professional labs. Widely used in electrical engineering education and research, the DWB‑01 is an essential tool for understanding resistance principles and conducting accurate circuit experiments.
The DWB‑01 Wheatstone Bridge is a portable precision instrument designed for resistance measurement and calibration. With a wide measuring range from 1 Ω to 11.11 MΩ, it integrates a built‑in galvanometer and bridge power source for convenient operation. Using the null measuring method, the DWB‑01 ensures high accuracy across multiple ranges. Its portable metal case provides shielding and durability, making it ideal for laboratory, educational, and field applications requiring precise resistance measurement.
