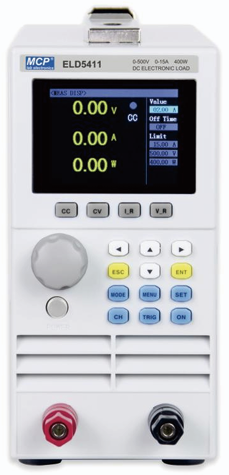

ELD5411 DC ELECTRONIC LOAD
BDT 42,741/-
Product Details
Brand: MCP
Model: ELD5411
Country Of Origin: China
Features
-
2.8" TFT LCD (320×240) with rich visual interface
-
Simple, intuitive operation with key lock protection
-
Supports CC, CV, CR, CP, CC+CV, and CR+CV modes
-
Specialized battery and LED test functions
-
Tran test for dynamic output performance
-
Scan test for power continuity verification
-
List test for simulating complex load changes
-
Short-circuit simulation capability
-
Built-in buzzer alarm and data retention on power failure
-
Remote USB operation (software optional)
-
Over-current, over-voltage, over-power, and over-temperature protection
-
Adjustable OVP and OCP thresholds
-
Intelligent fan speed control for reduced noise
-
Input polarity reverse protection
| Channels | Single |
| Power | 400W |
| Rated Input Voltage | 0–500V |
| Input Current | 0–15A |
| CV Mode |
Range: 0.1–19.999V / 0.1–150.00V (ELD5410, ELD5420); 0.1–19.999V / 0.1–500.00V (ELD5411) Resolution: 1mV / 10mV Accuracy: ±(0.05%+0.02%FS) |
| CC Mode |
Range: 0–3.000A / 0–40.00A (ELD5410); 0–3.000A / 0–20.00A (ELD5420); 0–3.000A / 0–15.00A (ELD5411) Resolution: 1mA / 10mA Accuracy: ±(0.05%+0.05%FS) |
| CR Mode |
Range: 0.05Ω–1kΩ / 1kΩ–4.5kΩ Resolution: 10mΩ / 100mΩ Accuracy: ±(0.1%+0.5%FS) |
| CP Mode |
Range: 0–400W (ELD5410, ELD5411); 0–200W (ELD5420) Resolution: 10mW Accuracy: ±(0.1%+0.5%FS) |
| Tran Test |
Mode: CC, CV T1 & T2: 1ms–60s (1ms resolution) Accuracy: ±(0.1%+1ms) |
| Battery Test |
Discharge Mode: CC, CR Max Capacity: 9999Ah Resolution: 1mA / 10mA / 10mΩ / 100mΩ |
| Voltage Measurement |
Range: 0.1–19.999V / 0.1–150.00V (ELD5410, ELD5420); 0.1–19.999V / 0.1–500.00V (ELD5411) Resolution: 1mV / 10mV Accuracy: ±(0.05%+0.1%FS) |
| Current Measurement |
Range: 0–3.000A / 0–40.00A (ELD5410); 0–3.000A / 0–20.00A (ELD5420); 0–3.000A / 0–15.00A (ELD5411) Resolution: 1mA / 10mA Accuracy: ±(0.05%+0.1%FS) |
| Power Measurement |
Range: 0–400W (ELD5410, ELD5411); 0–200W (ELD5420) Resolution: 10mW Accuracy: ±(0.1%+0.5%FS) |
| Protection |
OVP: >155V cutoff OCP: >42A (ELD5410), >22A (ELD5420), >16A (ELD5411) OP: 420W (ELD5410, ELD5411), 220W (ELD5420) OTP: 85°C cutoff Short Circuit: CC ≈3A/40A (ELD5410), ≈3A/20A (ELD5420), ≈3A/15A (ELD5411); CR ≈40mΩ |
| Power Source: | 100–240VAC ±10%, 50/60Hz |
| Dimensions: | 90×190×300mm |
| Weight: | 3.0kg |
The ELD5400 Series DC Electronic Loads deliver precision performance for power supply, battery, and LED testing. With multiple operation modes (CC, CV, CR, CP) and advanced test functions including Tran, Scan, and List modes, these instruments simulate real-world load conditions with high accuracy. Featuring a 2.8" TFT LCD, intelligent fan control, and comprehensive protection systems, the ELD5410, ELD5420, and ELD5411 models are ideal for laboratory, R&D, and production testing environments.
