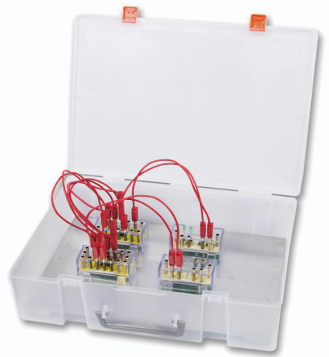

F1-3 BASIC LOGIC CIRCUIT TRAINING SYSTEM
BDT 86,210/-
Product Details
Brand: MCP
Model: F1-3
Country Of Origin: China
Features
The training system is used in the digital electronic circuits, it can be completed according to the F1‑3 experiment manual. Totally 26 recommended basic logic circuit experiments are contained in this system with the corresponding components and more experiments can be designed to do by yourself.
| System contain: |
Grid panel and plastic box — 1 pc Components — 39 pcs Leads — 20 pcs Experiment manual — 1 pc |
| Adder and Subtractor |
Half‑Adder, Half‑Subtractor SUM in Full‑Adder and DIFFERENCE in Full‑Subtractor Co for X+Y+Ci Full‑Adder with Half‑Adders 2‑Bit Parallel Binary Adder 4‑Bit Binary Full‑Adder/2’s‑complement 4‑Bit Binary Full‑Subtractor |
| Bistable or Flip‑Flop |
R‑S Flip‑Flop with NAND Gates Gated R‑S Flip‑Flop D Flip‑Flop AND‑Gated J‑K Master‑Slave Flip‑Flop |
| Binary Counters |
Binary ripple counter Synchronous counter |
| Divide‑by‑N Counters and Decade Counters |
Modulus 3 Counter Modulus 6 Counter Decade Counter 2421 Decade Counter 8421 IC Decade Counter IC Divide‑by‑10 Counter |
| Shift Registers and Ring Counter |
Shift Register IC Shift Register Quinary ring counter Twisted‑ring or Johnson Counter |
| Pulse Forming and Shaping / The Schmitt Trigger |
Transistor Astable IC Astable Pulse Stretchers Schmitt Trigger |
The F1‑3 Basic Logic Circuit Training System provides a structured and practical way to study digital electronics. With 39 components and 26 guided experiments, learners can build and test circuits for adders, subtractors, flip‑flops, counters, and shift registers. The system also covers pulse forming and shaping with Schmitt triggers, giving students a strong foundation in digital logic design. Packaged in a durable plastic box with leads and manuals, the F1‑3 is widely used in schools, vocational colleges, and training centers to introduce advanced digital circuit concepts in a hands‑on manner.
The F1‑3 Basic Logic Circuit Training System is a comprehensive educational kit for learning digital electronics and logic design. It includes a grid panel, 39 components, 20 leads, and a manual with 26 guided experiments. Students can explore adders, subtractors, flip‑flops, counters, shift registers, and pulse shaping circuits. With modular assembly and transparent component organization, the system provides hands‑on practice in digital circuit design. Compact and versatile, the F1‑3 is ideal for classrooms, vocational colleges, and labs teaching advanced digital electronics fundamentals.
