F1-4 CLASSICAL DIGITAL CIRCUIT TRAINING SYSTEM
BDT 96,823/-
Product Details
Brand: MCP
Model: F1-4
Country Of Origin: China
Features

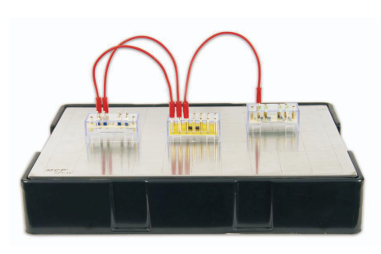

The training system is used in the digital electronic circuits, it can be completed according to the F1‑4 experiment manual. Totally 57 recommended classical digital circuit experiments are contained in this system with the corresponding components and more experiments can be designed to do by yourself.
| System contain: |

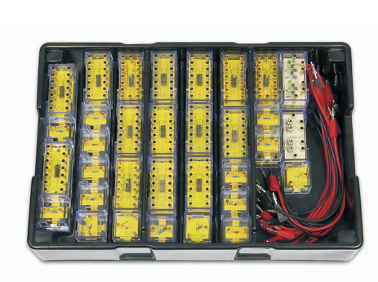

Grid panel and tray — 1 pc Components — 77 pcs Leads — 30 pcs Experiment manual — 1 pc |
| Basic Logic Function |
OR logic gate INVERT logic gate OR + INVERT = NOR logic gate NOR logic gate 2‑input NAND logic gate 4‑input NAND logic gate AND‑OR‑INVERT logic gate |
| Boolean Algebra |
A = A̅ A + 1 = 1, A + 0 = A, A + A̅ = A, A + A̅ = 1 A • 1 = A, A • 0 = 0, A • A = A, A • A̅ = 0 Logic equation |
| De Morgan's Theorem |
A + B = A̅ • B̅, A + B = A̅ • B̅, A • B = A̅ + B̅, A + B + C = A̅ • B̅ • C̅, A • B • C = A̅ + B̅ + C̅, A • C + B • C = (A + B) • C |
| Exclusive‑OR and Its Applications |
Exclusive‑OR Half‑Adder, Half‑Subtractor Binary Comparator Parity Generator |
| Adder and Subtractor |
Half‑Adder, Half‑Subtractor SUM in Full‑Adder and DIFFERENCE in Full‑Subtractor Co for X + Y + Ci Full‑Adder with Half‑Adders 2‑Bit Parallel Binary Adder 4‑Bit Binary Full‑Adder / 2’s‑complement 4‑Bit Binary Full‑Subtractor |
| Bistable or Flip‑Flop |
R‑S Flip‑Flop with NAND Gates Gated R‑S Flip‑Flop D Flip‑Flop AND‑Gated J‑K Master‑Slave Flip‑Flop |
The F1‑4 Classical Digital Circuit Training System provides a structured and practical way to study digital electronics. With 77 components and 57 guided experiments, learners can build and test circuits for logic gates, Boolean algebra, De Morgan’s theorem, XOR applications, adders, subtractors, and flip‑flops. The system offers a strong foundation in digital logic design and classical circuit principles. Packaged in a durable tray with leads and manuals, the F1‑4 is widely used in schools, vocational colleges, and training centers to introduce advanced digital circuit concepts in a hands‑on manner.
The F1‑4 Classical Digital Circuit Training System is a complete educational kit for learning digital electronics and classical logic circuits. It includes a grid panel, 77 components, 30 leads, and a manual with 57 guided experiments. Students can explore logic gates, Boolean algebra, De Morgan’s theorem, XOR applications, adders, subtractors, flip‑flops, and counters. With modular assembly and transparent component organization, the system provides hands‑on practice in digital circuit design. Compact and versatile, the F1‑4 is ideal for classrooms, vocational colleges, and labs teaching advanced digital electronics fundamentals.
