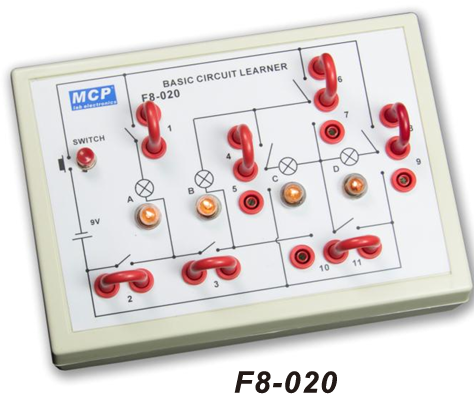

F8-020 BASIC CIRCUIT LEARNER
BDT 6,187/-
Product Details
Brand: MCP
Model: F8-020
Country Of Origin: China
Features
-
Learn basic circuit principles through hands‑on practice
-
Supports more than 10 types of circuit connections
-
Demonstrates characteristics of series and parallel circuits via bulb brightness
-
Easy access for voltmeter and ammeter connections
| Circuit Connection Examples: |
Two bulbs in series Two bulbs in parallel Three bulbs in series Three bulbs in parallel Mixed series‑parallel combinations |
| Standard F8 dimensions: | 240 × 90 × 170 mm |
| Includes: | 1 set of 7 safety jumpers and 1 power adaptor (9 V / 2 A) |
The F8‑020 Basic Circuit Learner is a practical teaching tool for introducing electrical circuit concepts. Designed for hands‑on experimentation, it supports more than 10 circuit configurations including series, parallel, and mixed arrangements. Students can observe bulb brightness to understand circuit behavior, while easy access points allow integration with voltmeters and ammeters for measurement. Supplied with safety jumpers and a 9 V/2 A adaptor, the F8‑020 is compact, safe, and ideal for schools, vocational colleges, and labs. Widely used in electrical engineering education, it is an essential instrument for building foundational knowledge in circuit theory.
he F8‑020 Basic Circuit Learner is an educational trainer designed to teach fundamental electrical circuit principles. With support for over 10 circuit configurations, it allows students to explore series, parallel, and mixed connections using bulbs as indicators. Compact and safe, the unit includes jumpers and a power adaptor, making it ideal for schools, universities, and vocational training centers. By observing bulb brightness, learners can easily deduce circuit characteristics and gain practical understanding of electrical fundamentals.
