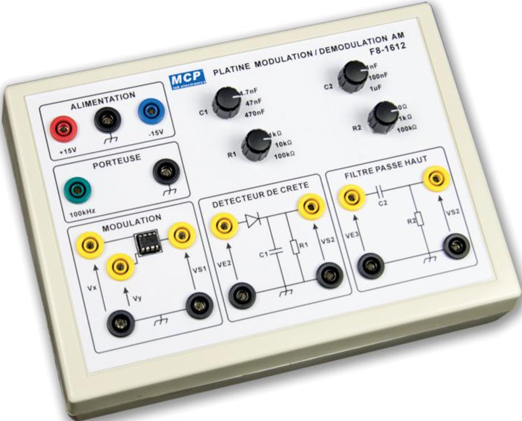

F8-1612 AM LEARNER
BDT 7,734/-
Product Details
Brand: MCP
Model: F8-1612
Country Of Origin: China
Features
-
Amplitude modulation using multiplier (AD633)
-
Built‑in sinusoidal carrier generator at 100 kHz
-
Separate peak detector and high‑pass filter modules
-
Rotary switches for selectable capacitors and resistors
| Power supply: | ±15 V via 4 mm safety sockets |
| Carrier signal: | 100 kHz sine wave |
| Capacitors: | 4.7 nF / 47 nF / 470 nF, 1 nF / 100 nF / 1 µF |
| Resistors: | 1 kΩ / 10 kΩ / 100 kΩ, 100 Ω / 1 kΩ / 100 kΩ |
| Inlets/outlets: | 4 mm safety sockets |
| Dimensions: | 240 × 90 × 170 mm |
| Weight: | 0.6 kg |
The F8‑1612 AM Learner is a versatile teaching tool for communication engineering experiments. Designed to demonstrate amplitude modulation and demodulation, it integrates three modules: a multiplier (AD633), a peak detector, and a high‑pass filter. A built‑in 100 kHz sinusoidal generator provides the carrier signal, reducing the need for external equipment. Rotary switches allow students to select resistor and capacitor values, making it possible to observe the effects of RC time constants on demodulation performance. Compact and lightweight, the F8‑1612 is widely used in schools, vocational colleges, and research labs as an essential instrument for teaching modulation principles and supporting signal processing experiments.
The F8‑1612 AM Learner is a comprehensive educational trainer designed for studying amplitude modulation and demodulation. Integrating a multiplier (AD633), peak detector, and high‑pass filter, it allows students to explore the complete modulation chain. A built‑in 100 kHz carrier generator simplifies experiments, while rotary selectors provide flexibility in choosing resistor and capacitor values. Compact and safe, the F8‑1612 is ideal for schools, universities, and labs focusing on communication systems and signal processing.
