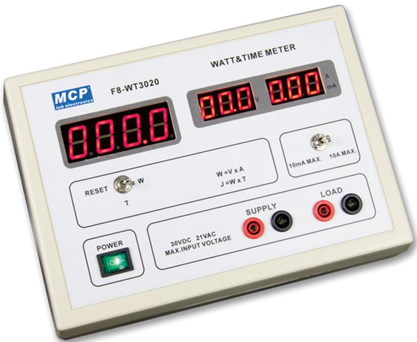

F8-WT3020 WATT & TIME METER
BDT 9,023/-
Product Details
Brand: MCP
Model: F8-WT3020
Country Of Origin: China
Features
-
Direct watt measurement with two ranges: mW and W (max. 100 W)
-
Time measurement with 0.1 s resolution, up to 1000 s duration
-
Simultaneous voltage and current measurement
| Electrical supply: | 220 ~ 240 VAC, 50 ~ 60 Hz |
| Dimensions: | 240 × 170 × 90 mm |
| Mass: | 1 kg |
| Max. input voltage: | 30 VDC, 21 VAC (rms) |
| Voltage resolution: | 0.1 |
| Max. load current: | W range = 10 A, mW range = 10 mA |
| Current resolution: | 0.01 A, 0.01 mA |
| Max. power: | W range = 100 W, mW range = 100 mW |
| Power resolution: | 0.01 W, 0.01 mW |
| Max. time: | 1000 s |
| Time resolution: | 0.1 s |
| Accuracy: | ±5% of full‑scale reading |
The F8‑WT3020 Watt & Time Meter is a versatile teaching tool for electrical energy experiments. Designed to provide direct readings of voltage, current, wattage, and time, it simplifies demonstrations by removing the need for separate instruments such as voltmeters, ammeters, and stopwatches. With dual measurement ranges (mW and W), high resolution, and ±5% accuracy, it ensures reliable results for both low‑power and high‑power applications. Compact and lightweight, the F8‑WT3020 is widely used in schools, vocational colleges, and research labs as an essential instrument for teaching electrical power principles and supporting empirical investigations.
The F8‑WT3020 Watt & Time Meter is a precision educational instrument designed to measure electrical power supplied to a load. With direct readings for voltage, current, wattage, and time, it eliminates the need for separate instruments, enabling rapid and accurate results. Compact and lightweight, the F8‑WT3020 is ideal for schools, universities, and labs conducting experiments on electrical energy, power consumption, and time‑based measurements.
