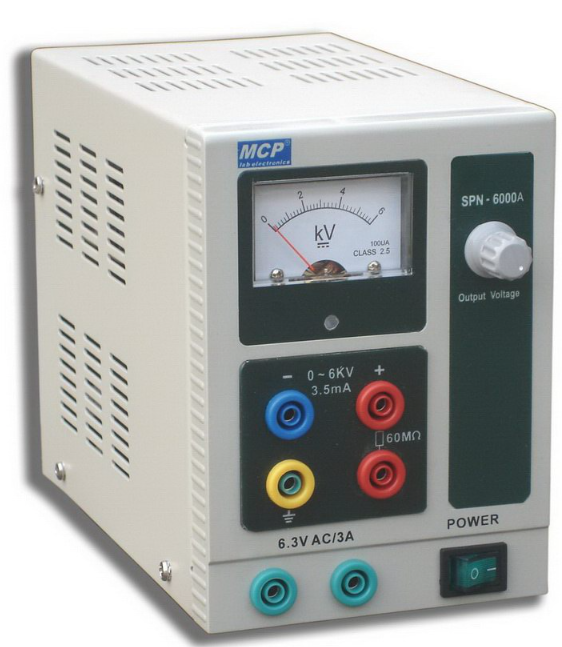

High Voltage Adjustable Power Supply SPN6000A
BDT 19,701/-
Product Details
Brand: MCP
Model: SPN6000A
Country Of Origin: China
Feature:
-
Output voltage: 0 ~ 6kVDC / 3mA, 6.3VAC / 3A
-
Input voltage: 220 ~ 240VAC ±10%, 50Hz or 110 ~ 127VAC ±10%, 60Hz
| Output voltage: | 0 ~ 6kVDC / 3mA, 6.3VAC / 3A |
| Input voltage: | 220 ~ 240VAC ±10%, 50Hz or 110 ~ 127VAC ±10%, 60Hz |
| Dimensions: | 108 (W) × 154 (H) × 240 (D) mm |
| Weight: | 5kg |
What is this
This is a high voltage DC power supply and AC filament power supply. It can provide up to 6 kV DC at 3 mA and 6.3 V AC at 3 A.
How is it used
Set or select the required output and connect it to the high voltage circuit or equipment being tested. The 6 kV DC output is used for high voltage applications, while the 6.3 V AC output can be used for filament or heater circuits.
Where is it used
It is mainly used in:
High voltage laboratory experiments
Electronic tube and vacuum tube testing
High voltage circuit testing
Insulation and dielectric testing
Educational and research laboratories
High voltage equipment development
Its main purpose is to provide a controlled high voltage DC supply together with a 6.3 V AC heater supply for specialized high voltage and vacuum tube applications.
The SPN6000A High Voltage Adjustable Power Supply is a robust and precise instrument designed for laboratories, education, and advanced testing environments. It delivers an output voltage range of 0 ~ 6kVDC at 3mA and 6.3VAC at 3A, making it suitable for high‑voltage experiments and specialized applications. Built with dual input voltage compatibility (220–240VAC or 110–127VAC), it ensures flexibility across different regions. Compact yet powerful at 5kg, the SPN6000A provides reliable performance for engineers, educators, and researchers requiring stable high‑voltage DC and AC outputs in a single unit.
