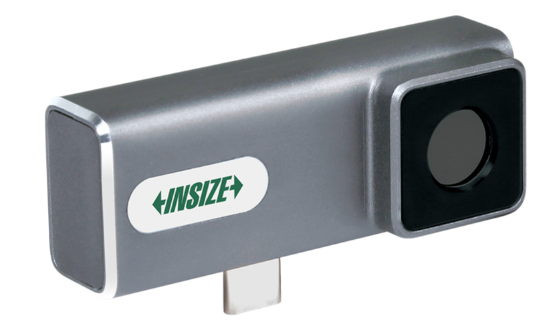

Infrared Thermal Imaging Camera for Mobile Phone
BDT 90,850/-
Product Details
Brand: INSIZE
Model: 0236-MC150
Country Of Origin: China
Features:
Suitable for intelligent farming, electrical industry, mechanical industry, construction, heating ventilation and air conditioning, etc.
Clearly identify people and animals hundreds of meters away in the darkness field
Automatically focus on subjects by touching the screen to quickly produce clear thermal images
Up to 3 spots, 1 line and 2 areas of subjects to be analyzed
Mobile App is included (only for Android system)
| Infrared detector: detector type | unrefrigerated vanadium oxide, 7.5μm~14μm |
| Infrared resolution | 256×192@12μm |
| Infrared frame rate | 25Hz |
| Lens: focal length | 7mm |
| Field of view | 25° |
| Focusing mode | automatic/electric |
| Detection range | 100m |
| Temperature measurement: measurement range | -20°C~150°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target | spot, line, area |
| Function: photo and video | available |
| Color palettes | 9: white hot, fulgurite, iron red, hot iron, medical, north pole, rainbow 1, rainbow 2, black hot; 1 customized |
| Instant sharing | images, videos |
| Power supply: voltage | 4.5V~5.5V |
| Power | 500mW |
| Environmental parameter: operating temperature | 0°C~45°C |
| Protection | IP43, 1m drop test |
| Certification | CE, RoHS |
| Physical parameter: external interface | USB TYPE-C |
| Dimension (L×W×H) | 59×20×24mm |
| Weight | 40g |
The Insize 0236-MC150 is a compact Infrared Thermal Imaging Camera designed to transform your Android mobile phone into a powerful thermal diagnostic tool. Featuring a 256×192 unrefrigerated vanadium oxide detector with a 25Hz frame rate, this pocket-sized device delivers clear thermal images and videos. Its 7mm lens provides a 25° field of view with a detection range of up to 100 meters, making it suitable for intelligent farming, electrical inspection, mechanical maintenance, construction, and HVAC applications. It can also clearly identify people and animals hundreds of meters away in complete darkness.
The MC150 offers automatic/electric focusing, allowing users to quickly produce clear thermal images by simply touching the screen. It supports advanced analysis with up to 3 spots, 1 line, and 2 areas, and features 9 color palettes plus 1 customizable palette. The device measures temperatures from -20°C to 150°C with ±2°C or ±2% accuracy. With a USB Type-C interface for instant sharing of images and videos, the camera is powered directly by the phone (4.5V~5.5V, 500mW). Weighing only 40g and rated IP43 with a 1m drop test, it is a durable and portable solution for on-the-go thermal imaging. The mobile app is included and supports Android systems only.
Turn Your Phone into a Thermal Camera: Insize 0236-MC150 IR Thermal Imager
Upgrade your Android smartphone with the Insize 0236-MC150 Infrared Thermal Imaging Camera. This ultra-compact, plug-and-play device delivers professional-grade thermal imaging for electricians, HVAC technicians, farmers, and building inspectors. With a 256×192 IR detector and 25Hz frame rate, it captures smooth, detailed thermal images and videos directly on your phone screen.
Key Features and Benefits:
-
High-Resolution Thermal Imaging: 256×192 unrefrigerated vanadium oxide detector with 7.5μm~14μm spectral range for clear thermal detail.
-
Long Detection Range: Detects subjects up to 100m away, and can identify people and animals in complete darkness.
-
Advanced Analysis: Supports up to 3 spots, 1 line, and 2 areas for precise temperature analysis.
-
Wide Temperature Range: Measures -20°C to 150°C with ±2°C or ±2% accuracy.
-
Multiple Color Palettes: Choose from 9 palettes (white hot, fulgurite, iron red, hot iron, medical, north pole, rainbow 1, rainbow 2, black hot) plus 1 customized option.
-
Instant Sharing: Capture and share images/videos instantly via USB Type-C connection.
-
Compact & Durable: Weighs only 40g, measures 59×20×24mm, and features IP43 protection with a 1m drop test rating.
-
Android App Included: Dedicated mobile app for seamless operation (Android only).
