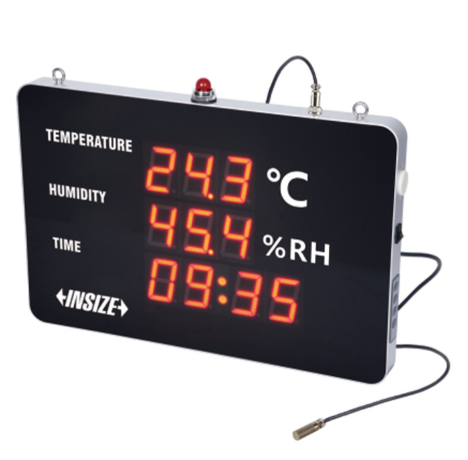

Large Screen Time/Temperature/Humidity Meters
BDT 121,894/-
Product Details
Brand: INSIZE
Model: 0314-L643B
Country Of Origin: China
Features:
High definition LED large screen display: temperature, humidity, time
Exceeding limit alarm: buzzer alarm, digit/light flash alarm
Installation method: wall mounted or ring type
Computer software is included (record type)
| Type | digital |
| Sensor type | separated |
| Dimension (L×W×H) | 600×400×36mm |
| Temperature range | -40°C~80°C |
| Temperature accuracy | ±0.5°C (at 0°C~80°C), other range ±2°C |
| Humidity range | 5%RH~95%RH |
| Humidity accuracy | ±3%RH (@25°C) |
| Storage | yes |
| Upper and Lower Limit Alarm Function | yes |
The Insize 0314 Series is a comprehensive line of Large Screen Time/Temperature/Humidity Meters engineered for high-visibility environmental monitoring in industrial, commercial, and public spaces. Featuring a high-definition LED display, these meters clearly present temperature, humidity, and time readings from a distance, making them ideal for warehouses, production floors, greenhouses, and server rooms. The series offers six models with varying screen sizes (400×265mm to 600×400mm) and two sensor configurations: integrated or separated (external probe).
Models ending in "A" feature an integrated sensor with a temperature range of -20°C to 60°C, while models ending in "B" feature a separated sensor with an extended range of -40°C to 80°C. All models provide humidity measurement from 5%RH to 95%RH with ±3%RH accuracy (at 25°C). Key features include a critical upper and lower limit alarm function with buzzer and flashing digit/light alerts, flexible wall or ring mounting, onboard storage, and included record-type computer software for data logging and analysis.
High-Visibility Environmental Monitoring with the Insize 0314 Series Large Screen Meters
Keep temperature, humidity, and time in clear view with the Insize 0314 Series Large Screen Time/Temperature/Humidity Meters. Designed for industrial and commercial environments, these digital meters feature high-definition LED displays that are easily readable from a distance. Whether monitoring a warehouse, greenhouse, or production facility, the 0314 Series provides instant, accurate environmental data with a range of sizes and sensor options to fit your specific application.
Key Features and Benefits:
-
High-Definition LED Display: Large, bright screen shows temperature, humidity, and time simultaneously.
-
Comprehensive Alarm System: Exceeding limit alarm with buzzer and digit/light flash alerts for immediate notification.
-
Multiple Size Options: Choose from 400×265mm, 500×330mm, or 600×400mm screen sizes to match your space.
-
Integrated or Separated Sensor: "A" models feature an integrated sensor (-20°C~60°C); "B" models feature a separated sensor with extended range (-40°C~80°C).
-
High Accuracy: Temperature accuracy of ±0.5°C (at 0°C~60°C or 0°C~80°C) and humidity accuracy of ±3%RH (@25°C).
-
Flexible Installation: Can be wall-mounted or hung using a ring-type method.
-
Data Logging Software: Includes record-type computer software for tracking and analyzing environmental data.
-
Onboard Storage: Supports data storage for later retrieval and reporting.
