LL-24B BREAD BOARD
BDT 1,755/-
Product Details
Brand: MCP
Model: LL-24B
Country Of Origin: China

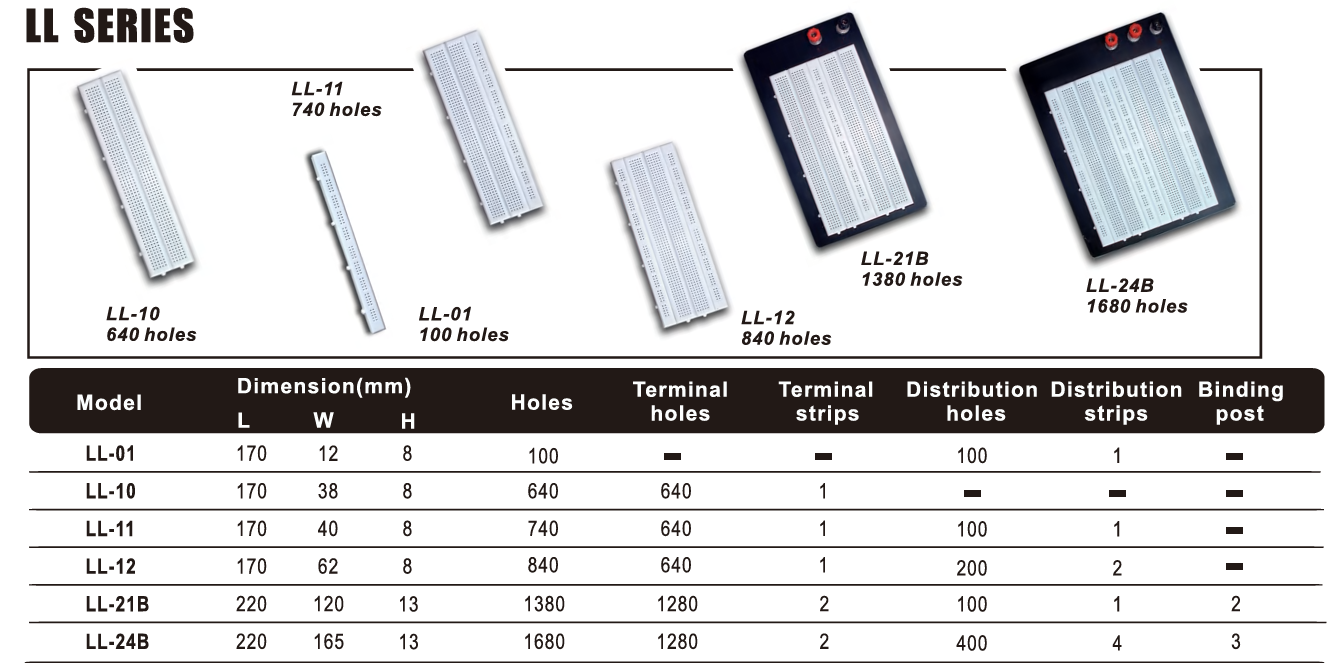

Models LL-01, LL-10, LL-11, LL-12, LL-21B, LL-24B
Technical Data
| Model | Dimensions (mm) | Holes | Terminal Holes | Terminal Strips | Distribution Holes | Distribution Strips | Binding Posts |
|---|---|---|---|---|---|---|---|
| LL-01 | 170×12×8 | 100 | — | — | 100 | 1 | — |
| LL-10 | 170×38×8 | 640 | 640 | 1 | — | — | — |
| LL-11 | 170×40×8 | 740 | 640 | 1 | 100 | 1 | — |
| LL-12 | 170×62×8 | 840 | 640 | 1 | 200 | 2 | — |
| LL-21B | 220×120×13 | 1380 | 1280 | 2 | 100 | 1 | 2 |
| LL-24B | 220×165×13 | 1680 | 1280 | 2 | 400 | 4 | 3 |
| Dimensions (mm) | 220×165×13 |
| Holes | 1680 |
| Terminal Holes | 1280 |
| Terminal Strips | 2 |
| Distribution Holes | 400 |
| Distribution Strips | 4 |
| Binding Posts | 3 |
LL Series Solderless Breadboards
A range of reusable solderless breadboards for building and testing circuits without soldering. Push component leads straight into the holes, change the design as often as you like, and pick the size that fits your project, from a slim power rail strip to a large multi-strip board with binding posts.
Use it for: electronics classrooms, hobby projects, prototyping, and quick circuit tests on the bench.
You can:
Build and modify circuits quickly with no soldering
Use the terminal strips for components and the distribution strips for power and ground lines
Connect external power through the binding posts (LL-21B and LL-24B)
Combine boards, for example a distribution strip alongside a terminal board, to build a larger layout
Choosing a model:
Model Size (mm) Total holes Terminal holes Distribution holes Binding posts
LL-01 170 × 12 × 8 100 none 100 (1 strip) none
LL-10 170 × 38 × 8 640 640 (1 strip) none none
LL-11 170 × 40 × 8 740 640 (1 strip) 100 (1 strip) none
LL-12 170 × 62 × 8 840 640 (1 strip) 200 (2 strips) none
LL-21B 220 × 120 × 13 1380 1280 (2 strips) 100 (1 strip) 2
LL-24B 220 × 165 × 13 1680 1280 (2 strips) 400 (4 strips) 3
Which one to pick:
LL-01: power and ground strip only, meant to add to another board.
LL-10: a basic board for small circuits.
LL-11 / LL-12: the same terminal area with one or two power rails built in.
LL-21B: a larger board for bigger circuits, with binding posts for power.
LL-24B: the largest board, with four distribution strips for circuits that need several supply rails.
The LL Series Breadboards provide versatile prototyping platforms for electronics design and experimentation. Available in multiple sizes from compact 100-hole boards to large 1680-hole configurations, they support both terminal and distribution strips with optional binding posts. Designed for durability and ease of use, the LL Series is ideal for educational labs, hobbyists, and professional engineers needing reliable circuit prototyping solutions.
