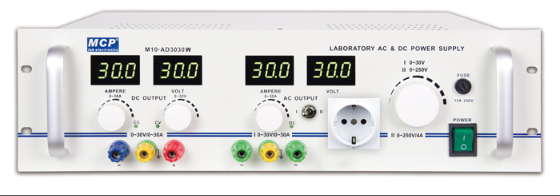

M10-AD3030 LABORATORY AC & DC POWER SUPPLY
BDT 146,813/-
Product Details
Brand: MCP
Model: M10-AD3030
Country Of origin: China
Features
.AC and DC combined power supply
.DC constant voltage and constant current
.AC output over load protection
.19-inch rack mount (3U) and benchtop
.Output from front panel and rear panel
.Temperature controlled fan
| DC Line Regulation: | CV 6×10-4+3mV CC 2×10-3+3mA |
| Load Regulation: | CV 3×10-3+5mV CC 2×10-3+5mA |
| Ripple & Noise: | CV 50mVrms CC 50mArms |
| Display Accuracy: | Voltmeter ±(1.0%Rdg+2digits) Ampmeter ±(1.0%Rdg+2digits) |
| Display Accuracy: | Voltmeter ±(1.0%Rdg+2digits) Ampmeter ±(1.0%Rdg+2digits) |
| Input Voltage: | 110~127VAC±10%, 220~240VAC±10% Switchable |
| Dimensions: | 19″3U |
| Weight: | 22kg |
What it is
A heavy-duty combined AC + DC power supply in a 19-inch 3U rack-mount (or benchtop) format. It offers regulated DC output with CV/CC modes and a protected AC output, with connections on both front and rear panels.
Purpose
To deliver both regulated DC and AC power from a single robust instrument for laboratory, production, and rack-based test systems.
Where to use it
- Electronics R&D and test laboratories
- Production and quality-control environments
- 19-inch rack-mounted test systems
- Educational or training labs needing higher-capacity combined power
How to use it
- DC side: Set voltage and current limit — the supply operates in Constant Voltage or Constant Current mode.
- AC side: Use the adjustable AC output, which includes overload protection.
- Connect loads via the front-panel or rear-panel terminals.
- The temperature-controlled fan manages cooling during continuous operation.
It is designed for professional and industrial use where a durable, rack-mountable AC + DC power source with good regulation and dual access is required.
The M10‑AD3030 Series AC & DC Combined Power Supply is a heavy‑duty instrument designed for laboratory, rack‑mount, and industrial applications. It provides both AC and DC outputs with constant voltage and constant current control, ensuring stable and precise performance. With overload protection, low ripple, and accurate digital metering, the M10‑AD3030 Series is ideal for demanding environments. Its 19‑inch 3U rack design and temperature‑controlled fan make it suitable for continuous operation in research labs, universities, and industrial setups requiring reliable AC/DC power.
