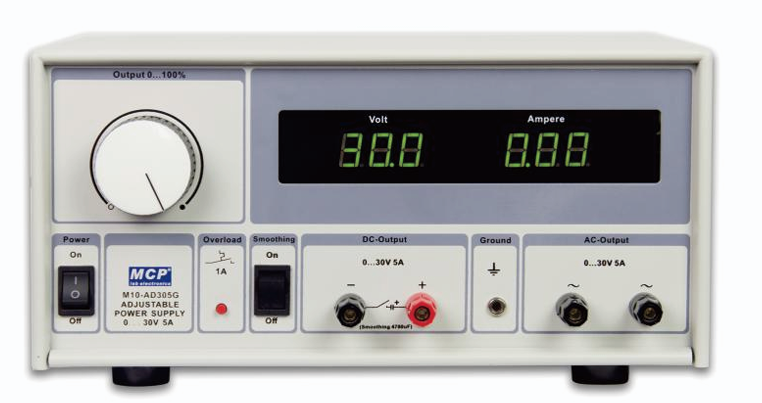

M10-AD305G AC DC POWER SUPPLY
BDT 32,356/-
Product Details
Brand: MCP
Model: M10-AD305G
Country Of origin: China
Features
-
Continuously adjustable AC & DC power supply
-
0–30V/5A output for both AC & DC
-
AC smooth mode ON/OFF function
-
Overload protection
-
Outputs galvanically isolated
| DC output: | 0–30V, Max. 5A |
| AC output: | 0–30V, Max. 5A |
| Max. output power: 150VA | 150VA |
| Display: | 2 × 3‑digit LED |
| Digit height: | 15 mm |
| Connections: | 4 mm jacks |
| Dimensions: | 280 × 205 × 140 mm |
| Weight: | 8.7 kg |
What it is
A continuously adjustable combined AC & DC power supply offering 0–30 V / 5 A on both the AC and DC outputs (max 150 VA). The outputs are galvanically isolated, with an AC smooth-mode option and overload protection.
Purpose
To provide independent, adjustable AC and DC power for electronics testing, educational experiments, and basic circuit development from a single unit.
Where to use it
- School and college electronics laboratories
- Vocational training workshops
- Basic R&D and repair benches
How to use it
- Independently set the AC and DC voltages (0–30 V) and observe the values on the dual 3-digit LED displays.
- Connect loads to the 4 mm safety jacks.
- Enable or disable the AC smooth mode as needed.
- Overload protection and galvanic isolation help keep both the supply and the connected circuits safe.
It is designed for educational and general laboratory use where simple, isolated, dual AC/DC adjustable power is required.
The M10‑AD305G AC & DC Power Supply is a versatile laboratory instrument offering continuously adjustable outputs up to 30V/5A for both AC and DC. With galvanically isolated outputs, overload protection, and an AC smooth mode ON/OFF function, it ensures safe and reliable operation. The dual LED displays provide clear voltage and current readings, while its compact design makes it suitable for benchtop use in research labs, universities, and industrial environments requiring precise dual‑output power.
