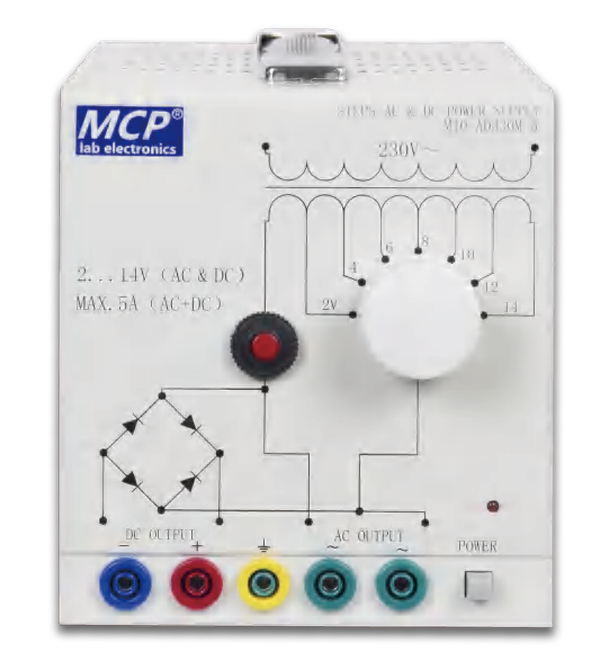

M10-AD330M-5 AC&DC POWER SUPPLY
BDT 11,345/-
Product Details
Brand: MCP
Model: M10-AD330M-5
Country Of Origin: China
Features
-
Both AC and DC output (full‑wave rectification)
-
Working diagram on panel for easy operation
-
Output 2–14V in 7 steps
-
Over current protection
-
Transformer thermal protection
| Output voltage: | 2V, 4V, 6V, 8V, 10V, 12V, 14V |
| Output current: | Max. 5A (AC + DC) |
| Output accuracy: | 10% |
| Input voltage: | 220–240VAC ±10%, 50Hz or 110–127VAC ±10%, 60Hz |
| Dimensions (W × H × D): | 132 × 160 × 260 mm |
| Weight: | 3.5kg |
What it is
A simple stepped AC/DC power supply that provides selectable voltages from 2 V to 14 V (in 7 steps) with both AC and full-wave rectified DC outputs, rated up to 5 A total.
Purpose
To supply basic fixed AC and DC voltages for introductory electronics experiments, student training, and simple circuit testing.
Where to use it
School and college electronics laboratories
Vocational training workshops
Basic hobbyist or educational benches
How to use it
Select the desired voltage step (2 V, 4 V, 6 V, 8 V, 10 V, 12 V, or 14 V) using the front-panel control.
Connect the load to the AC or DC output terminals.
The unit includes over-current protection and transformer thermal protection for safety.
A working diagram on the panel helps students understand the internal circuit.
It is designed for straightforward educational use where simple, low-cost stepped AC/DC power is needed.
The M10‑AD330M‑5 Power Supply is a versatile AC/DC unit designed for laboratory, training, and industrial applications. With full‑wave rectification and selectable output steps from 2V to 14V, it provides flexible voltage options for testing and development. Built‑in protections against over current and transformer overheating ensure safe and reliable operation. Compact and easy to use, the M10‑AD330M‑5 delivers up to 5A output, making it ideal for electronics labs, educational environments, and industrial testing setups.
