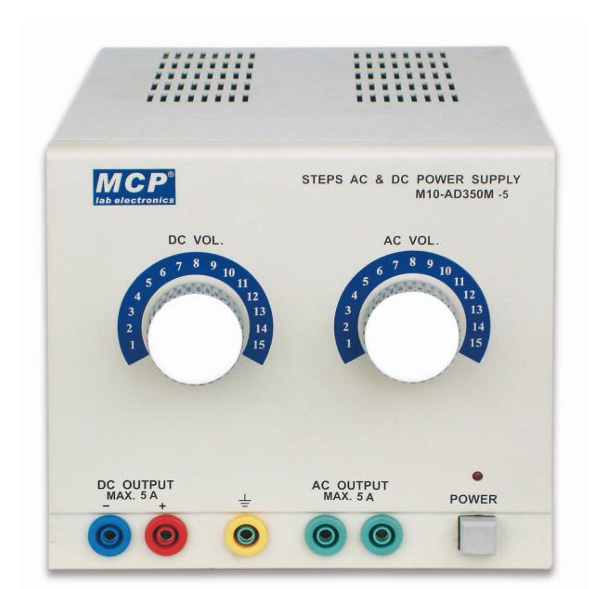

M10-AD350M-5 STEP AC&DC POWER SUPPLY
BDT 24,712/-
Product Details
Brand: MCP
Model: M10-AD350M-5
Country Of Origin: China
Features
-
Both AC and DC output (DC regulated)
-
Output 1–15V in 15 steps
-
Over current protection
-
Transformer thermal protection
| Output voltage: | 1V, 2V, 3V, 4V, 5V, 6V, 7V, 8V, 9V, 10V, 11V, 12V, 13V, 14V, 15V |
| DC line regulation: | 1% |
| DC load regulation: | 1% |
| DC ripple voltage: | 3mV |
| Input voltage: | 220–240VAC ±10%, 50Hz or 110–127VAC ±10%, 60Hz |
| Protection: | Over current, short‑circuit protection |
What it is
A stepped AC/DC power supply that provides selectable voltages from 1 V to 15 V (in 15 steps). The DC output is regulated, while the AC output is taken directly from the transformer.
Purpose
To supply clean, fixed AC and regulated DC voltages for electronics experiments, student training, and basic circuit testing.
Where to use it
School and college electronics laboratories
Vocational and technical training workshops
Introductory electronics benches
How to use it
Select the required voltage (1 V to 15 V in 1 V steps) using the front-panel switch.
Connect the load to either the AC or the regulated DC output terminals.
The unit includes over-current, short-circuit, and transformer thermal protection for safe operation.
It is designed for educational and basic laboratory use where precise stepped voltages with good DC regulation are needed.
The M10‑AD350M Series Power Supply is a versatile AC/DC regulated unit designed for laboratory, training, and industrial applications. With selectable voltage steps from 1V to 15V, it provides flexible output options for electronics testing and development. Built‑in protections against over current and short circuits ensure safe and reliable operation. Compact and efficient, the M10‑AD350M Series delivers stable DC performance with low ripple, making it ideal for educational environments, research labs, and industrial electronics setups.
