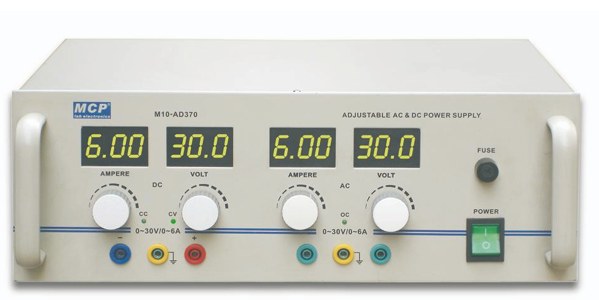

M10-AD370 ADJUSTABLE AC&DC POWER SUPPLY
BDT 57,200/-
Product Details
Brand: MCP
Model: M10-AD370
Country Of Origin: China
Features
-
AC and DC combined power supply
-
DC constant voltage and constant current
-
AC output current limited and continuously adjustable
-
AC output overload electronic protection
| DC Output voltage: | 0–30V |
| DC Output current: | 0–6A |
| DC Line regulation: | CV ≤ 1 × 10 − 4 + 3 mV , CC ≤ 2 × 10 − 3 + 3 mA |
| DC Load regulation: | CV ≤ 1 × 10 − 4 + 5 mV , CC ≤ 2 × 10 − 3 + 5 mA |
| DC Ripple & noise: | CV ≤ 1mVrms, CC ≤ 3mArms |
| Display accuracy: |
Voltmeter ±(0.2%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| AC Output voltage: | 0–30V |
| Output current: | 0–6A |
| Display accuracy: | Voltmeter ±(1.0%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| Input voltage: | 220–240VAC ±10%, 50Hz or 110–127VAC ±10%, 60Hz |
| Dimensions: | 380(W) × 140(H) × 300(D) mm |
| Weight: | 12kg |
A combined AC + DC laboratory power supply that provides a fully regulated DC output (0–30 V / 0–6 A with CV/CC) and a continuously adjustable AC output (0–30 V / 0–6 A) in one unit.
Purpose
To supply both precise regulated DC power and adjustable AC power for electronics testing, development, and educational experiments from a single instrument.
Where to use it
Electronics R&D and design laboratories
Educational and vocational training labs
Repair and testing workshops
Any bench needing both AC and high-quality DC power
How to use it
DC side: Set voltage (0–30 V) and current limit (0–6 A). The supply operates in Constant Voltage or Constant Current mode automatically with very low ripple and high regulation.
AC side: Continuously adjust the AC voltage (0–30 V) and set the current limit. Electronic overload protection prevents damage.
Monitor voltage and current on the displays for both outputs.
Connect loads independently to the AC and DC terminals as needed.
It is designed for professional and educational use where both clean regulated DC and adjustable AC power are required in a single compact instrument.
The M10‑AD370 AC & DC Combined Power Supply is a high‑performance dual‑output instrument designed for advanced laboratory and industrial testing. It provides both AC and DC outputs with constant voltage and constant current control, ensuring stable and precise power delivery. The DC section offers up to 30V/6A with ultra‑low ripple and noise, while the AC section delivers continuously adjustable output with overload protection. Equipped with accurate digital meters for voltage and current, the M10‑AD370 is ideal for research labs, universities, and industrial environments requiring versatile and reliable AC/DC power.
