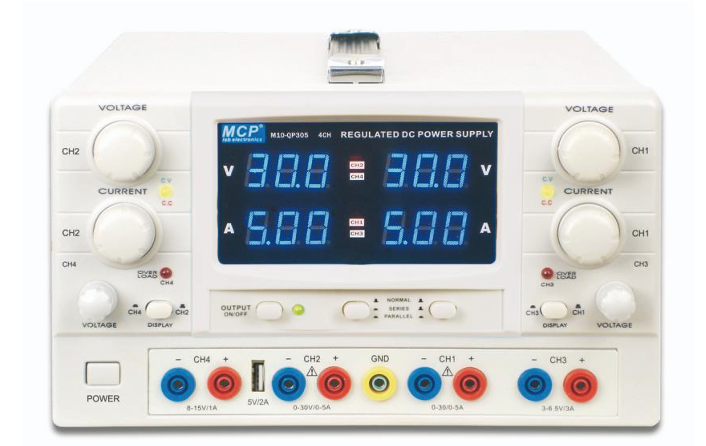

M10-QP305 REGULATED DC POWER SUPPLY
BDT 35,347/-
Product Details
Brand: MCP
Model:
Country Of origin: China
Features
-
Output OFF function, CH1 and CH2 voltage preset function
-
Quad independent DC outputs
-
USB power output (5V/2A)
-

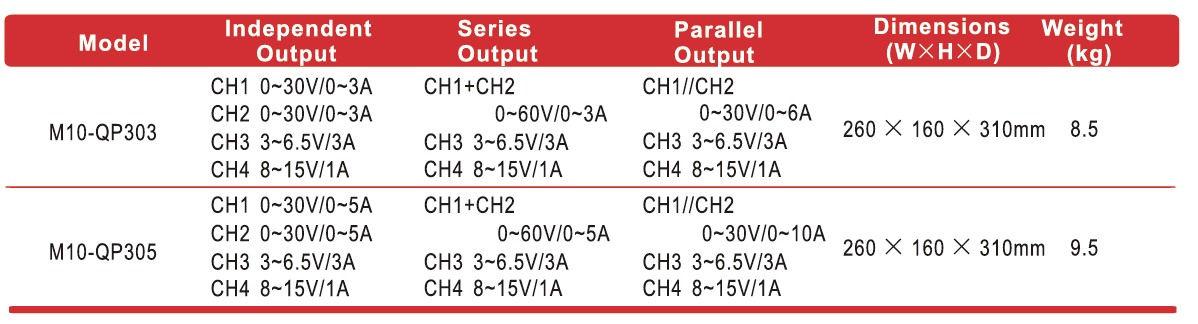

Independent, series, and parallel variety output
-
Constant voltage and constant current
-
Low ripple and noise
-
Plastic panel
-
Four LED displays with 3 digits, selectable for two sets output voltage and current display simultaneously
| Line regulation: |
CV ≤ 1×10−4+3mV (CH1, CH2) CC ≤ 2×10−3+3mA(CH1, CH2) Fixed: 5mV (CH3, CH4) |
| Ripple & noise: |
CV ≤ 1mVrms (CH1, CH2) CC ≤ 3mArms (CH1, CH2) Fixed: 2mVrms (CH3, CH4 |
| Display accuracy: | ±(0.5%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable) |
What is this
This is a quad output laboratory DC power supply. It provides stable DC power through four independent output channels. Two channels are adjustable, while the other two provide fixed outputs.
How is it used
Connect the power supply to AC mains and turn it on. Set the required voltage and current on the adjustable channels. Connect the output terminals to the circuit or device being tested, then turn the output on. The voltage and current can be monitored on the displays.
The outputs can also be connected independently, in series, or in parallel depending on the power requirements of the application.
Where is it used
It is mainly used in electronics laboratories, electrical laboratories, PLC and automation testing, electronic equipment repair, PCB testing, sensor and relay testing, Arduino and microcontroller projects, research and development, and educational laboratories.
Its main purpose is to provide controlled and stable DC power for powering, testing, troubleshooting, and developing electronic and electrical circuits.
The M10‑QP Series DC Power Supply is a quad‑output laboratory instrument designed for advanced electronics testing and development. The M10‑QP305 model provides four independent DC outputs, with CH1 and CH2 offering adjustable voltage/current and CH3 and CH4 fixed outputs. With constant voltage and constant current modes, USB power output (5V/2A), and options for independent, series, or parallel operation, it delivers maximum flexibility. Featuring low ripple and noise, accurate LED displays, and continuous operation, the M10‑QP Series is ideal for universities, research labs, and industrial environments requiring multi‑channel DC power.
