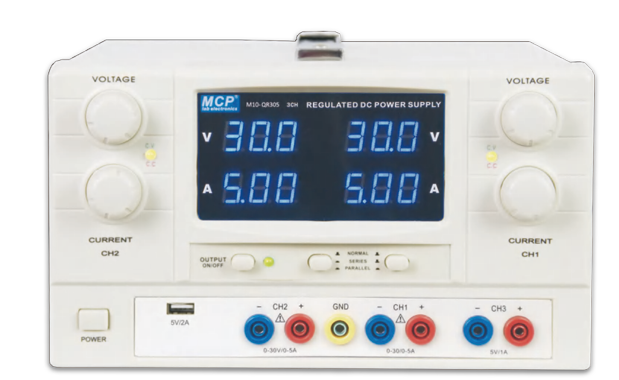

M10-QR305 TRIPLE & QUAD OUTPUT ADJUSTABLE DC POWER SUPPLY
BDT 22,485/-
Product Details
Brand: MCP
Model: M10-QR305
Country Of origin: China
Features
-
Output OFF function, voltage preset function
-
Triple independent DC outputs (two adjustable + one fixed)
-
USB power output (5V/2A)
-

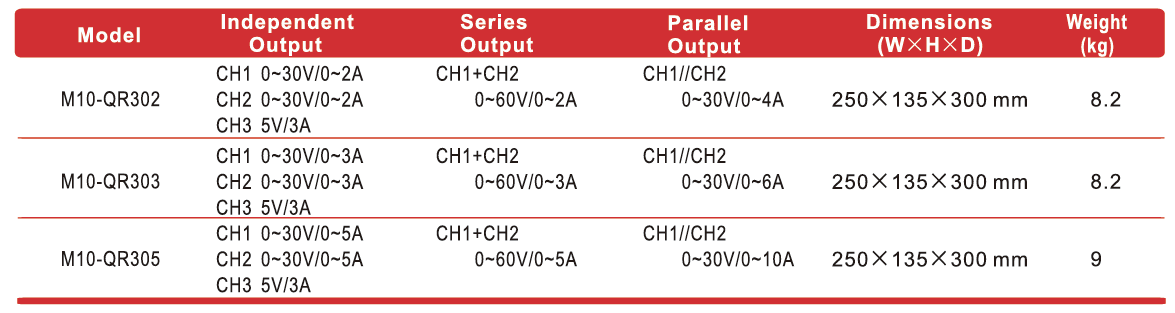

Independent, series, and parallel variety output
-
Constant voltage and constant current
-
Low ripple and noise
-
Four LED displays with 3 digits, selectable for two sets output voltage and current display simultaneously
-
16 hours continuous output with full load
-
Auto tracking output
| Line regulation: |
CV ≤ 1×10−4+3mV (CH1, CH2) CC ≤ 2×10−3+3mA (CH1, CH2) Fixed output: 5mV |
| Load regulation: |
CV ≤ 1×10−4+3mV(CH1, CH2) CC ≤ 2×10−3+3mA (CH1, CH2) Fixed output: 15mV |
| Ripple & noise: |
CV ≤ 1mVrms (CH1, CH2) CC ≤ 3mArms (CH1, CH2) Fixed output: 2mVrms |
| Display accuracy: | ±(0.5%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable) |
How to use the M10 QR305
The M10 QR305 is used by connecting its DC output to the device or circuit that you want to power or test.
Basic procedure
- Turn on the M10 QR305.
- Select the required output channel.
- Set the required voltage. For example, set 24 V if you need a 24 V DC supply.
- Set the current limit. For example, set 1 A if the circuit should not draw more than 1 A.
- Connect the positive terminal of the power supply to the positive terminal of your circuit.
- Connect the negative terminal of the power supply to the negative terminal of your circuit.
- Turn the output ON.
- Check the voltage and current shown on the display.
- When testing is finished, turn the output OFF before disconnecting the circuit.
Where is it used
The M10 QR305 can be used in many areas.
Electronics
It can power and test electronic circuits, circuit boards, sensors, IC circuits, Arduino boards and other DC devices.
PLC and Automation
It can be used to provide DC power to sensors, relays, control circuits and other automation components.
For example, if you are testing a 24 V sensor connected to a PLC, you can use the power supply to provide a stable 24 V DC supply to the sensor.
Electrical and Electronics Repair
Technicians can use it to supply controlled voltage to a device while troubleshooting or repairing it.
Educational Laboratory
Students can use it to learn about voltage, current, constant voltage operation and constant current operation.
Research and Development
It can provide a controlled power source while developing and testing new electronic circuits and prototypes.
Testing Motors and Other DC Loads
It can also be used to test suitable DC motors, fans, relays, lamps and other DC loads within the power supply's output rating.
Why use a laboratory power supply instead of an adapter
A normal adapter generally provides a fixed voltage. The M10 QR305 allows you to control the output voltage and current.
For example, you can test the same circuit at 5 V, 12 V or 24 V without changing the power supply.
The current limit is also useful for protecting a circuit during testing.
In simple terms, the M10 QR305 is a controllable DC power source for laboratories, electronics work, PLC and automation testing, repair work and product development.
The M10‑QR Series DC Power Supply is a triple‑output laboratory instrument designed for advanced electronics testing. The M10‑QR305 model provides two independent adjustable DC outputs plus one fixed output, offering maximum flexibility for research and development. With constant voltage and constant current modes, auto tracking, and USB power output (5V/2A), it supports a wide range of applications. Low ripple and noise, accurate LED displays, and continuous 16‑hour operation make the M10‑QR Series ideal for universities, research labs, and industrial environments requiring reliable multi‑output DC power.
