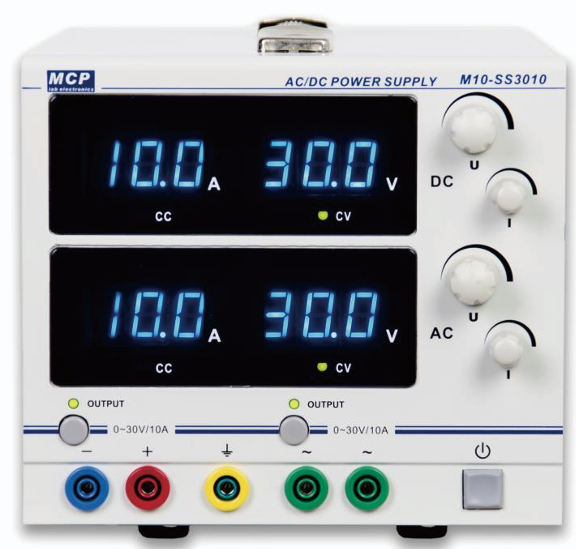

M10-SS3010 AC DC POWER SUPPLY
BDT 48,533/-
Product Details
Brand: MCP
Model: M10-SS3010
Country Of origin: China
Features
-
600W AC and DC power output
-
AC and DC both constant voltage and constant current
-
AC and DC can be set separately
-
Voltage and current continuous adjust and preset
-
AC power supply sine wave output
-
Output frequency switchable 50/60Hz and line tracing
-
Max. output voltage 30V, current 10A both AC and DC
-
Output on/off switching separate for AC and DC
-
Light and compact construction
| DC Output voltage: | 0–30VDC |
| DC Output current: | 0–10A |
| Voltage resolution: | 0.1V |
| Current resolution: | 0.1A |
| Line regulation: | CV ≤ 6 × 10 − 4 + 3 mV , CC ≤ 2 × 10 − 3 + 3 mA |
| Load regulation: | CV ≤ 2 × 10 − 3 + 5 mV , CC ≤ 2 × 10 − 3 + 3 mA |
| Ripple & noise: | CV ≤ 15mVrms, CC ≤ 15mArms |
| Display accuracy: | Voltmeter ±(1.0%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| AC Output voltage: | 2–30VAC RMS |
| AC Output current: | 0–10A |
| Voltage resolution: | 0.1V |
| Current resolution: | 0.1A |
| Output frequency: | 50Hz, 60Hz (switchable or line tracing) |
| Output accuracy: | Frequency ±1% |
| Display accuracy: | Voltmeter ±(1.0%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits |
| Input voltage: | 100–127VAC or 220–240VAC, 50Hz/60Hz |
| Dimensions: | 170(W) × 160(H) × 250(D) mm |
| Weight: | 3kg |
What it is
A compact 600 W combined AC + DC power supply in which both the AC and DC outputs support Constant Voltage (CV) and Constant Current (CC) modes. Maximum output is 30 V / 10 A for each side. The AC output is a pure sine wave with selectable 50/60 Hz or line-tracking frequency.
Purpose
To provide independent, high-quality regulated AC and DC power from a single lightweight instrument for testing, development, and educational use.
Where to use it
- Electronics R&D and design laboratories
- Product testing and quality-control benches
- Educational and vocational training labs
- Any workspace needing both clean AC and DC power in a portable package
How to use it
- Set voltage and current limits independently for the DC output (0–30 V / 0–10 A) and the AC output (2–30 V / 0–10 A).
- Choose AC frequency (50 Hz, 60 Hz, or line-tracking).
- Use the separate output On/Off switches for AC and DC.
- Monitor voltage and current on the displays; the supply automatically switches between CV and CC as needed.
- Preset values can be stored for quick recall.
It is designed for applications that require flexible, independent AC and DC power with good regulation, sine-wave AC output, and a light, compact form factor.
The M10‑SS3010 AC & DC Power Supply is a compact yet powerful 600W solution for laboratory and industrial applications. It delivers both AC and DC outputs with constant voltage and constant current control, offering up to 30V/10A on each channel. With sine wave AC output, switchable frequency (50/60Hz or line tracing), and separate on/off switching for AC and DC, it provides maximum flexibility for testing and development. Built‑in protections, precise digital metering, and lightweight construction make the M10‑SS3010 ideal for research labs, universities, and electronics workshops requiring reliable dual‑output power.
