M10-SS3010 SINGLE OUTPUT ADJUSTABLE DC POWER SUPPLY
BDT 13,602/-
Product Details
Brand: MCP
Model: M10-SS3010
Country of origin: China
Features
-
16 hours continuous output with full load
-
Over voltage protection
-
Voltage and current preset function
-
USB power output (5V/2A)
-
Constant voltage and constant current
-
Low ripple and noise
-
CV/CC auto switching
-
3‑digit LED display (4‑digit LED display optional)
| Line regulation: |
CV ≤ 5×10−4+3mV (M10‑QS30XX, M10‑QS60XX) CV ≤ 1×10−4+3mV CC ≤ 4×10−3+3mA (M10‑QS30XX, M10‑QS60XX) CC ≤ 2×10−3+3mA |
| Load regulation: |
M10‑QS30XX, M10‑QS60XX: CV ≤ 5×10−4+3mV(≤10A) CV ≤ 1×10−3+3mV(>10A) CC ≤ 4×10−3+3mA |
| Ripple & noise: | CV ≤ 1.5mVrms, CC ≤ 3mArms |
| Display accuracy: | ±(0.5%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable) |
What it is

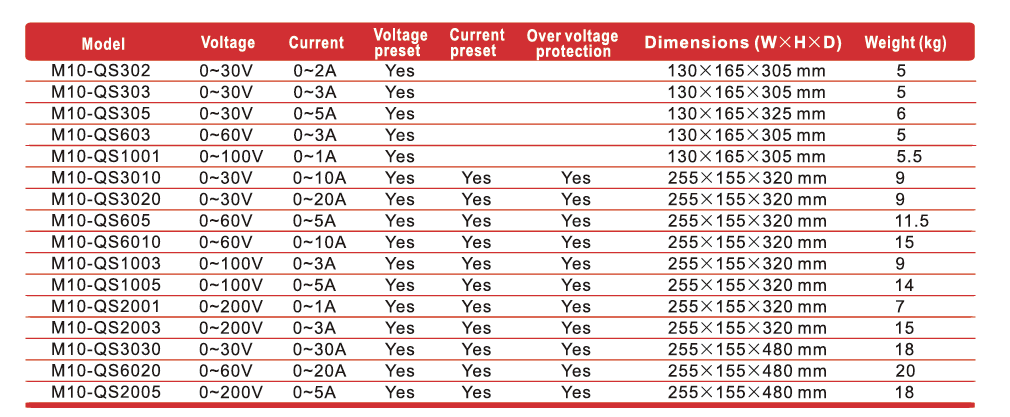

A series of laboratory DC power supplies (M10-QS models) with Constant Voltage / Constant Current operation, voltage & current presets, low ripple, over-voltage protection, and a built-in USB 5 V/2 A output. Some models support up to 16 hours of continuous full-load operation.
Purpose
To provide stable, clean, and protected DC power for electronics testing, development, and long-duration experiments, with the added convenience of a USB charging port.
Where to use it
- Electronics R&D and design laboratories
- Repair and service workshops
- Educational electronics labs
- Test benches requiring long continuous operation
How to use it
- Set the desired voltage and current limit (with preset function for quick recall).
- The supply automatically switches between Constant Voltage and Constant Current modes.
- Connect your circuit to the main output; use the USB port for 5 V/2 A devices if needed.
- Over-voltage protection and low ripple/noise ensure safe and clean power delivery.
It is designed for general laboratory and educational use where reliable regulated DC power, preset convenience, and optional long-runtime capability are required.
