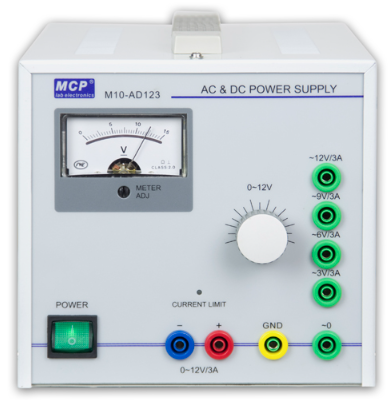

M10‑AD123 AC & DC Power Supply
BDT 11,408/-
Product Details
Brand: MCP
Model: M10‑AD123
Country Of Origin: China
Features
-
Both AC and DC output (DC regulated)
-
DC continuously adjustable
-
Electrically isolated AC output
-
Analog meter for DC voltage display
-
Current‑limit protection for DC output
| DC Output: | Output voltage: 0 ~ 12V Output current: 3A Load regulation: 5mV Line regulation: 1mV Ripple: 1mV Protection: Over current Display accuracy: 2.5% |
| AC Output: | Output voltage: 3V, 6V, 9V, 12V Output current: 3A |
| General: | Input voltage: 220 ~ 240VAC ±10%, 50Hz or 110 ~ 127VAC ±10%, 60Hz Dimensions: 175 (W) × 180 (H) × 270 (D) mm Weight: 3kg |
What is this
This is a combined AC and DC laboratory power supply. It provides adjustable regulated DC output from 0 to 12 V and fixed AC outputs of 3 V, 6 V, 9 V and 12 V.
How is it used
For DC operation, set the required voltage between 0 and 12 V and connect the output to the circuit being tested. The current limit protects the DC output from excessive current.
For AC operation, select the required AC voltage of 3 V, 6 V, 9 V or 12 V and connect it to the AC circuit or component being tested. The AC output is electrically isolated for safer laboratory testing.
Where is it used
It is mainly used in:
Electronics laboratories
Electrical laboratories
AC and DC circuit experiments
Testing electronic components
Testing motors, transformers and other electrical devices
Educational and training laboratories
Electronic circuit development and troubleshooting
Its main purpose is to provide both adjustable regulated DC power and isolated low voltage AC power from one laboratory unit.
The M10‑AD123 AC & DC Power Supply is a versatile and reliable instrument designed for laboratories, education, and electronics testing. It offers both AC and regulated DC outputs, with the DC voltage continuously adjustable from 0 ~ 12V at 3A. Featuring excellent regulation (5mV load, 1mV line), ultra‑low ripple (1mV), and an analog meter for precise DC voltage monitoring, it ensures stable and accurate performance. The AC output provides selectable voltages (3V, 6V, 9V, 12V) at 3A, making it suitable for a wide range of circuit experiments. Built with over‑current protection and dual input voltage compatibility (220–240VAC or 110–127VAC), the M10‑AD123 is compact, durable, and dependable at 3kg. Ideal for students, engineers, and hobbyists requiring both AC and DC power in one unit.
