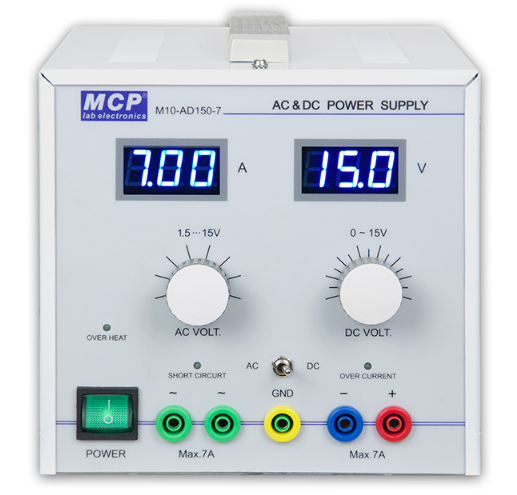

M10‑AD150‑7 AC & DC Power Supply
BDT 19,632/-
Product Details
Brand: MCP
Model: M10‑AD150‑7
Country Of Origin: China
Features
-
Both AC and DC output (DC regulated)
-
DC continuously adjustable and AC step‑by‑step
-
LED meters for both voltage and current display
-
Current‑limit protection for DC output
-
Short‑circuit protection for AC output
-
Over‑heat protection for the device
| DC Output: | Output voltage: 0 ~ 15V Output current: 7A Load regulation: 5mV Line regulation: 2mV Ripple: 2mV |
| AC Output: | Output voltage: 1.5V … 15V (12 steps) Output current: 7A |
| Display Accuracy: | DC voltmeter: ±(0.2% Rdg + 2 digits) DC ammeter: ±(1.0% Rdg + 3 digits) AC ammeter: ±(1.5% Rdg + 5 digits) |
| General: | Input voltage: 220 ~ 240VAC ±10%, 50Hz or 110 ~ 127VAC ±10%, 60Hz Dimensions: 175 (W) × 180 (H) × 270 (D) mm Weight: 5kg |
What is this
This is a combined AC and DC laboratory power supply. It provides continuously adjustable regulated DC power from 0 to 15 V and selectable AC power from 1.5 to 15 V in 12 steps, with up to 7 A output current.
How is it used
For DC operation, set the required voltage between 0 and 15 V and connect the output to the circuit or device being tested. The LED meters show the output voltage and current.
For AC operation, select the required voltage step and connect the AC output to the equipment being tested.
The unit provides current limit protection for DC output, short circuit protection for AC output and overheat protection for the power supply.
Where is it used
It is mainly used in:
Electronics laboratories
Electrical laboratories
AC and DC circuit testing
Testing motors and electrical components
Testing transformers and control circuits
Power supply testing
Electronic equipment repair
Educational and training laboratories
Its main purpose is to provide both adjustable DC and selectable AC power for testing, troubleshooting and developing electrical and electronic circuits.
The M10‑AD150‑7 AC & DC Power Supply is a powerful and versatile instrument designed for laboratories, education, and electronics testing. It offers both AC and regulated DC outputs, with the DC voltage continuously adjustable from 0 ~ 15V at 7A and AC voltage selectable in 12 steps from 1.5V to 15V at 7A. Featuring excellent regulation (5mV load, 2mV line), ultra‑low ripple (2mV), and LED meters for precise voltage and current monitoring, it ensures stable and accurate performance. Built with multiple safety protections including current‑limit for DC, short‑circuit for AC, and over‑heat protection, the M10‑AD150‑7 is reliable and durable. Compact yet robust at 5kg, it is ideal for students, engineers, and hobbyists requiring dual AC/DC power for precision testing and circuit development.
