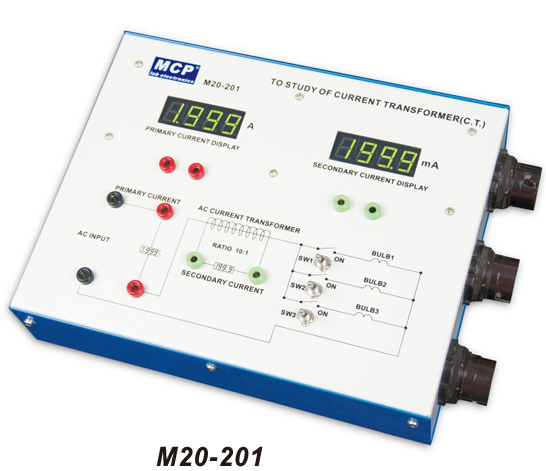

M20-201 CURRENT TRANSFORMER
BDT 11,755/-
Product Details
Brand: MCP
Model: M20-201
Country Of Origin: China
Features
-
Φ4 mm socket for convenient connections
-
Digital current meters for primary and secondary current indication
-
Three bulb sockets (W27) for lamp connection
| Primary current: | 0 ~ 2 A |
| Secondary current: | 0 ~ 200 mA |
| Current meter 1 display: | 0 ~ 1.999 A (3½ digits) |
| Current meter 2 display: | 0 ~ 199.9 mA (3½ digits) |
| Current transformer ratio: | 10:1 |
| Power source: | 110 ~ 127 VAC ±10% 60 Hz or 220 ~ 240 VAC ±10% 50 Hz |
| Dimensions: | 250 × 80 × 200 mm |
| Weight: | 2.5 kg |
The M20‑201 Current Transformer Experiment Unit is a practical teaching tool for studying current transformation. Featuring dual digital meters to display both primary (0 ~ 2 A) and secondary (0 ~ 200 mA) currents, it enables clear demonstration of transformer principles. With a fixed 10:1 ratio and three bulb sockets for load connection, students can observe how input current is reduced proportionally at the output. The unit is CE‑certified, compact, and designed with safety in mind, making it suitable for electrical engineering courses, vocational training, and laboratory experiments. Widely used in universities and technical institutes, the M20‑201 is an essential instrument for understanding transformer operation and current conversion.
The M20‑201 Current Transformer Experiment Unit is a specialized educational instrument designed to demonstrate current transformation principles. Equipped with dual digital current meters, it allows clear observation of primary and secondary currents. With a transformer ratio of 10:1 and integrated bulb sockets for load connection, the unit provides accurate and safe experimentation. Compact and CE‑certified, the M20‑201 is ideal for electrical engineering labs, schools, and universities to study transformer behavior and current conversion.
