M21-1000 BASIC ELECTRICAL TRAINING SYSTEM
BDT 35,268/-
Product Details
Brand: MCP
Model: M21-1000
Country Of Origin: China
Features
-
Provides electrical components and interconnections in multiple configurations
-
Teaches basic electrical engineering, installations, and measurements
-
Enables verification of fundamental laws and principles (Ohm’s law, Kirchhoff’s law, Thevenin’s theorem, etc.)
-
Front panel includes clear component symbols and circuit diagrams
-
Easy connections via 4mm terminals and color-coded cables
-
Built-in power supplies with extra-low safety voltage
| Component: |
General switch, fuse, signaling lamp Pushbuttons (×2), shunters (×2), inverter (×1) |
| Safety single-phase transformer: | 115–230V / 6–12–24VAC, 1A |
| Fuse-holder | with 6×30–1A fuse |
| Moving iron ammeter: | 0.5–1A range |
| Moving iron voltmeter: | 25V range |
| 10 resistors: | 2Ω, 4Ω, 8Ω, 16Ω, 31.5Ω, 63Ω, 250Ω, 500Ω, 1kΩ, 2kΩ |
| Linear rheostat: | 100Ω / 25W |
| 4 diodes: | 6A–100V |
| Lamp Holder: | 2 lamp holders with 24V signaling lamps |
| Buzzer | 24VAC buzzer |
| Capacitors: | 100µF (×1), 500µF (×2) |
| Inductors: | 60mH, 0.5A (×2) |
| Relay: | 2 exchange contacts, 24VAC coil |
| Cable set: | 25mm with 4mm plugs |
| Input voltage: | 110–127VAC ±10% (60Hz), 220–240VAC ±10% (50Hz), switchable |
| Dimensions: | 258×953×334mm |
| Weight: | 4.5kg |

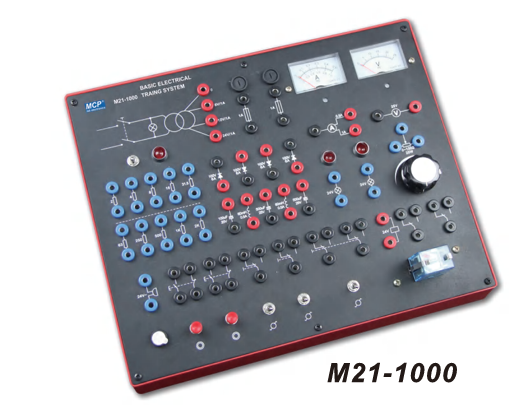

M21-1000 / M21-1100 Basic Electrical Engineering Trainer
A hands-on trainer for learning the fundamentals of electrical circuits, installations, and measurements. Components and circuit symbols are printed on the front panel, and safe extra-low-voltage supplies let students build and test real circuits with confidence.
Use it for: technical schools, vocational training, college electrical courses, and teaching labs.
You can:
Verify Ohm's law, Kirchhoff's laws, superposition, Thevenin's theorem, and maximum power transfer
Measure AC and DC voltage, current, and power
Build diode rectifiers: half-wave, full-wave, bridge, and voltage doubler
Study capacitor charging and discharging, and series and parallel configurations
Explore inductance and resonance with RC, RL, and LC circuits, coupled circuits, and filters
Run transformer experiments
Wire lighting circuits: single lamp, multiple lamps, hotel room, and relay-controlled
Build buzzer and acoustic signaling circuits
Included on the panel:
Safety transformer (115-230 V to 6-12-24 VAC, 1 A) with main switch, fuse, and signal lamp
Moving iron ammeter (0.5-1 A) and voltmeter (25 V)
10 resistors (2 Ω to 2 kΩ) and a 100 Ω / 25 W linear rheostat
4 diodes (6 A, 100 V)
Capacitors (1 × 100 µF, 2 × 500 µF) and inductors (2 × 60 mH, 0.5 A)
2 lamp holders with 24 V lamps, 24 VAC buzzer, 2 pushbuttons, 2 shunters, and an inverter
Relay with 2 changeover contacts and 24 VAC coil
Step-by-step relay (M21-1100 only)
Cable set with 4 mm plugs
Connections: 4 mm terminals and color-coded cables make wiring quick and safe.
Specs: 110-127 V / 220-240 V switchable (50/60 Hz), 4.5 kg.
The M21-1000 Series Basic Electrical Training Systems provide a comprehensive platform for learning electrical engineering fundamentals. With built-in transformers, meters, resistors, capacitors, inductors, relays, and signaling devices, these systems enable hands-on experiments in AC/DC measurements, rectification, circuit laws, resonance, and power analysis. The M21-1100 adds step-by-step relay functionality for advanced switching exercises. Compact and safe, these training systems are ideal for technical institutes, vocational schools, and engineering labs.
