M21-1100 BASIC ELECTRICAL TRAINING SYSTEM
BDT 39,186/-
Product Details
Brand: MCP
Model: M21-1100
Country Of Origin: China
Features
-
Provides electrical components and interconnections in multiple configurations
-
Teaches basic electrical engineering, installations, and measurements
-
Enables verification of fundamental laws and principles (Ohm’s law, Kirchhoff’s law, Thevenin’s theorem, etc.)
-
Front panel includes clear component symbols and circuit diagrams
-
Easy connections via 4mm terminals and color-coded cables
-
Built-in power supplies with extra-low safety voltage
| Components | General switch, fuse, signaling lamp, 2 pushbuttons, 2 shunts, 1 inverter |
| Safety Single-Phase Transformer | 115–230V / 6–12–24VAC, 1A |
| Fuse Holder | With 6×30mm, 1A fuse |
| Moving-Iron Ammeter | 0.5–1A range |
| Moving-Iron Voltmeter | 25V range |
| Resistors (10 pcs.) | 2Ω, 4Ω, 8Ω, 16Ω, 31.5Ω, 63Ω, 250Ω, 500Ω, 1kΩ, 2kΩ |
| Linear Rheostat | 100Ω / 25W |
| Diodes (4 pcs.) | 6A / 100V |
| Lamp Holders | 2 holders with 24V signaling lamps |
| Buzzer | 24VAC |
| Capacitors | 100µF (1 pc.), 500µF (2 pcs.) |
| Inductors | 60mH, 0.5A (2 pcs.) |
| Relay | 2 changeover contacts, 24VAC coil |
| Cable Set | 25mm with 4mm plugs |
| Input Voltage | 110–127VAC ±10% (60Hz) or 220–240VAC ±10% (50Hz), switchable |
| Dimensions | 258 × 953 × 334mm |
| Weight | 4.5kg |

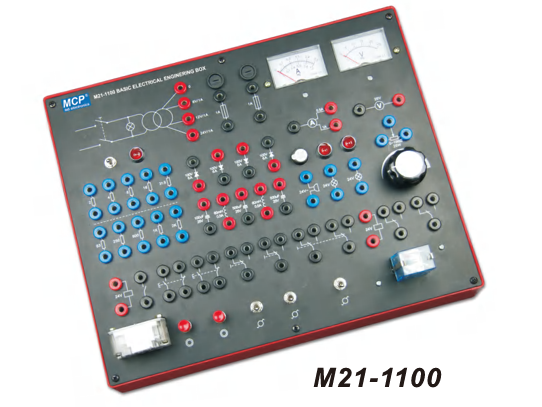

M21-1000 / M21-1100 Basic Electrical Engineering Trainer
A hands-on trainer for learning the fundamentals of electrical circuits, installations, and measurements. Component symbols and circuit diagrams are printed on the front panel, and built-in extra-low-voltage supplies let students build and test real circuits safely.
Use it for: technical schools, vocational training, college electrical courses, and teaching labs.
You can:
Verify Ohm's law, Kirchhoff's laws, superposition, Thevenin's theorem, and maximum power transfer
Measure AC and DC voltage, current, and power
Build diode rectifiers: half-wave, full-wave, bridge, and voltage doubler
Study capacitor charging and discharging, and series and parallel configurations
Explore RC, RL, and LC circuits, resonance, coupled circuits, and filters
Run transformer experiments
Wire lighting circuits: single lamp, multiple lamps, hotel room, and relay-controlled
Build buzzer and signaling circuits
On the panel: safety transformer (115-230 V to 6-12-24 VAC, 1 A) with switch, fuse, and signal lamp; moving iron ammeter and voltmeter; 10 resistors and a 100 Ω / 25 W rheostat; 4 diodes; capacitors and inductors; 2 lamps, a buzzer, pushbuttons, and a relay; and a cable set with 4 mm plugs. The M21-1100 also includes a step-by-step relay.
Specs: 110-127 V / 220-240 V switchable (50/60 Hz), 4.5 kg.
The M21-1100 Series Basic Electrical Training Systems provide a comprehensive platform for learning electrical engineering fundamentals. With built-in transformers, meters, resistors, capacitors, inductors, relays, and signaling devices, these systems enable hands-on experiments in AC/DC measurements, rectification, circuit laws, resonance, and power analysis. The M21-1100 adds step-by-step relay functionality for advanced switching exercises. Compact and safe, these training systems are ideal for technical institutes, vocational schools, and engineering labs.
