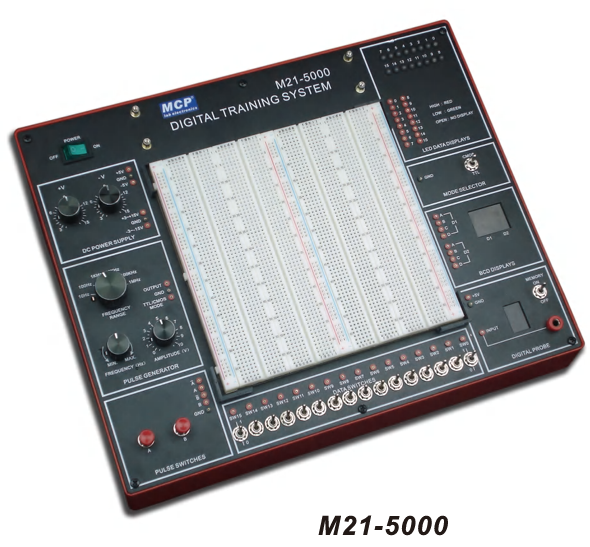

M21-5000 DIGITAL TRAINING SYSTEM
BDT 37,227/-
Product Details
Brand: MCP
Model: M21-5000
Country Of Origin: China
Features
-
High-level, high-quality digital trainer
-
Combines all essential functions for digital experiments
-
Includes removable breadboard, DC power supply, pulse generator, pulse switches, digital probe, TTL/CMOS selector, and more
| Solderless Breadboard |
2820 tie points, nickel-plated contacts Fits all DIP sizes and AWG #22–30 wires Removable and replaceable for different experiments Connectable to demonstration panel |
| DC Power Supply |
+5V fixed, 1A ±5V fixed, 1A 0–+15V variable, 1A –3V to –15V variable, 1A |
| Mode Selector Switch | TTL/CMOS mode selection for pulse generator, switches, probe, and LED display |
| LED Display | Two-Digit 7-Segment LED Display |
| Pulse Generator |
Duty cycle: 50% Frequency ranges: 1Hz–1MHz (seven ranges) Amplitude: 0–10Vpp TTL output: +4V; CMOS output: +VDC |
| Sixteen-Bit LED Display |
TTL mode: LO <0.8V (green), HI >2.3V (red) CMOS mode: LO <30%+VDC (green), HI >70%+VDC (red) |
| Two Pulse Switches |
Outputs: A/Ā, B/B̄ TTL: HI=4V, LO=0.1V; CMOS: HI=+VDC, LO=0.1V |
| Sixteen Data Switches | TTL: HI=4V, LO=0V; CMOS: HI=+VDC, LO=0V |
| Digital Probe |
TTL mode: L (<0.8V), H (>2.3V), O (0.8–2.3V), P (transition) CMOS mode: L (<30%+VDC), H (>70%+VDC), O (30–70%+VDC), P (transition) Memory LEDs indicate level transitions |
| Accessories |
Power cord Pin cables: 10cm ×20pcs, 20cm ×20pcs User manual |
| Input Voltage | 110–127VAC ±10% (60Hz), 220–240VAC ±10% (50Hz), switchable |
| Dimensions | 334×95×258mm |
| Weight | 4.5kg |
M21-5000 Digital Trainer
An all-in-one bench trainer for learning and testing digital logic. It combines a removable breadboard, power supplies, pulse generator, switches, and displays, with a TTL/CMOS selector so the same setup works with either logic family.
Use it for: electronics classrooms, teaching labs, vocational training, and student projects.
You can:
Build circuits on the removable 2820-point solderless breadboard
Switch the pulse generator, switches, probe, and LED display between TTL and CMOS levels
Generate a 50% duty cycle clock from 1 Hz to 1 MHz (seven ranges, up to 10 Vpp)
Set logic levels with 16 data switches, and trigger circuits cleanly with 2 debounced pulse switches (outputs A/Ā, B/B̄)
Watch outputs on a 16-LED display (green for LO, red for HI) and a 2-digit 7-segment display
Check logic levels and catch fast transitions with the digital probe (L, H, O, and P indications, with memory LEDs)
Power supplies: fixed +5 V and ±5 V (1 A each), variable 0 to +15 V and -3 V to -15 V (1 A each).
Includes: trainer unit, power cord, pin cables (10 cm × 20, 20 cm × 20), and user manual.
Specs: 110-127 V / 220-240 V switchable (50/60 Hz), 334 × 95 × 258 mm, 4.5 kg.
The M21-5000 Digital Training System is a high-level educational platform for digital electronics and logic circuit experiments. Featuring a removable 2820-point breadboard, variable DC supplies, TTL/CMOS mode selection, pulse generator, and LED displays, it enables hands-on learning of digital logic, timing, and signal analysis. Ideal for engineering institutes and technical labs, the M21-5000 provides a complete environment for studying gates, counters, flip-flops, and microprocessor interfacing.
