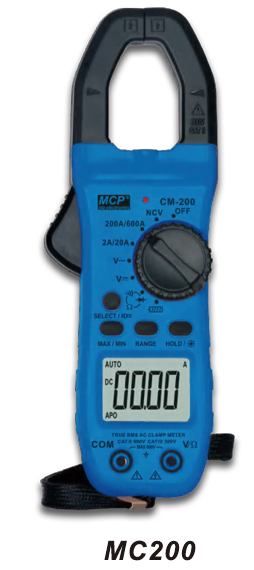

MC200 PORTABLE DIGITAL CURRENT CLAMP
BDT 1,977/-
Product Details
Brand: MCP
Model: MC200
Country Of Origin: China
Features:
3 1/2 digit display
Clamp open 28mm
Portable design, easy use
Full function protection, strong anti-interferential performance
CE standard design, improving the safety of test
Max/Min, data hold
Non-contact voltage testing with visible alarm
Clamp light display and backlight display
True RMS
Battery function
| Display: | 3 1/2 digit LCD (Max. 1999 counts) |
| ACA Range: | 2A / 20A / 200A / 600A |
| ACA Accuracy: | Âą(2.0% +5) |
| DCV Accuracy: | Âą(0.5% +5) |
| ACV Accuracy: | Âą(1.0% +5) |
| Resistance Accuracy: | Âą(0.8% +1) |
| Input Impedance: | 10MΊ |
| Sampling Rate: | 3 times/s |
| AC Frequency Response: | Current (50-60)Hz / Voltage (50-400)Hz |
| Clamp Opening: | 28mm |
| Battery: | 3V, AAA X 2 |
| Weight: | 200g (including battery) |
| Standard Accessories: | Test leads, battery, English manual |
The MCP MC200 Portable Digital Current Clamp is a versatile, auto-ranging testing instrument designed for safe and accurate electrical diagnostics. Featuring a 28mm clamp opening, it allows for non-invasive current measurement without disconnecting circuits. This True RMS clamp meter offers a wide range of functions, including AC Current (2A~600A), DC Voltage (200mV~600V), AC Voltage (2V~600V), and Resistance (200Ω~20MΩ). It also includes a dedicated battery/voltage measurement function (20V). Key features include Non-Contact Voltage (NCV) testing with a visible alarm, clamp light and backlight displays for dark environments, Max/Min hold, data hold, diode test, and continuity alarm. Built with CE standard design and full function protection, it ensures safety and reliability. The meter has a 3 1/2 digit display (max. 1999 counts), auto power-off after 15 minutes, and a low battery indicator. It is powered by two AAA batteries and weighs 200g.
MCP MC200 Portable Digital Current Clamp – True RMS, NCV, 600A AC, 28mm Jaw
Measure current safely and accurately with the MCP MC200, a professional-grade portable digital clamp meter designed for electricians, engineers, and technicians. This True RMS clamp meter combines versatile measurement functions with a user-friendly, portable design, making it ideal for industrial, commercial, and residential electrical diagnostics.
Key Features & Benefits:
-
Non-Invasive Current Measurement: Features a 28mm clamp opening for safe AC current measurement up to 600A without disconnecting circuits.
-
True RMS Measurement: Ensures accurate readings for both AC and DC signals, even with non-sinusoidal waveforms.
-
Comprehensive Measurement Functions:
-
AC Current: 2A / 20A / 200A / 600A
-
DC Voltage: 200mV / 2V / 20V / 200V / 600V
-
AC Voltage: 2V / 20V / 200V / 600V
-
Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
-
Battery/Voltage Measurement: 20V
-
-
Non-Contact Voltage (NCV) Detection: Safely detects live voltage with a visible alarm.
-
Special Functions: Includes diode test, continuity alarm, MAX/MIN hold, and data hold.
-
Clear Display: 3 1/2 digit LCD (max. 1999 counts) with clamp light and backlight for easy reading in dark environments.
-
Smart Power Management: Auto power-off after 15 minutes of inactivity and low battery indicator (below 2.4V).
-
Durable & Safe: CE standard design with full function protection and strong anti-interferential performance.
