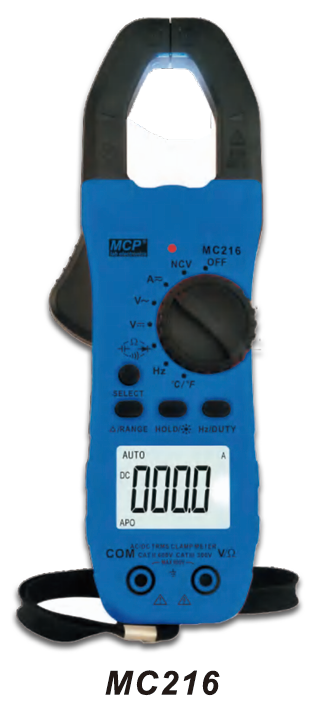

MC216 PORTABLE DIGITAL CURRENT CLAMP
BDT 4,026/-
Product Details
Brand: MCP
Model: MC216
Country Of Origin: China
Features:
3 5/6 digit display
Clamp open 28mm
TRUE RMS, Data hold, Duty cycle test, REL test
Non-contact voltage testing with visible alarm
Clamp light display, or backlight display
Portable design, easy use
Full function protection, strong anti-interferential performance
CE standard design, improving the safety of test
| Display: | 3 5/6 digit LCD (Max. 6000 counts) |
| ACA/DCA Range: | 2A / 20A / 200A / 600A |
| ACA/DCA Accuracy: | ±(2.0% +30) |
| DCV Accuracy: | ±(0.5% +3) |
| ACV Accuracy: | ±(0.8% +5) |
| Resistance Accuracy: | ±(0.8% +3) |
| Capacitance Accuracy: | ±(3.5% +20) |
| Frequency Accuracy: | ±(0.1% +3) |
| Temperature Accuracy: | ±(1.0% +5) |
| Input Impedance: | 10MΩ |
| Sampling Rate: | 3 times/s |
| AC Frequency Response: | Current 40-1kHz / Voltage 40-2kHz |
| Clamp Opening: | 28mm |
| Battery: | 3V, AAA X 2 |
| Meter Size: | 210 mm×110 mm×45 mm |
| Weight: | 200g (including battery |
The MCP MC216 Portable Digital Current Clamp is a comprehensive, auto-ranging testing instrument designed for professional electrical diagnostics. Featuring a 28mm clamp opening, it allows for non-invasive current measurement up to 600A AC/DC without disconnecting circuits. This True RMS clamp meter offers an extensive range of functions, including DC Voltage (600mV~600V), AC Voltage (6V~600V), DC/AC Current (2A~600A), Resistance (600Ω~60MΩ), Capacitance (6nF~40mF), Frequency (10Hz~10MHz), and Temperature (-40℃~1000℃ / 0℉~1832℉). Key features include Non-Contact Voltage (NCV) testing with a visible alarm, clamp light and backlight displays, data hold, duty cycle test, REL test, diode test, and continuity alarm. Built with CE standard design and full function protection, it ensures safety and reliability. The meter has a large 3 5/6 digit display (max. 6000 counts), auto power-off after 15 minutes, and a low battery indicator. It is powered by two AAA batteries, measures 210 x 110 x 45 mm, and weighs 200g.
MCP MC216 Portable Digital Current Clamp – True RMS, NCV, 600A AC/DC, 28mm Jaw
Measure current safely and accurately with the MCP MC216, a professional-grade portable digital clamp meter designed for electricians, engineers, and technicians. This True RMS clamp meter combines an extensive range of measurement functions with a user-friendly, portable design, making it ideal for industrial, commercial, and residential electrical diagnostics.
Key Features & Benefits:
-
Non-Invasive Current Measurement: Features a 28mm clamp opening for safe AC/DC current measurement up to 600A without disconnecting circuits.
-
True RMS Measurement: Ensures accurate readings for both AC and DC signals, even with non-sinusoidal waveforms.
-
Comprehensive Measurement Functions:
-
DC/AC Current: 2A / 20A / 200A / 600A
-
DC Voltage: 600mV / 6V / 60V / 600V
-
AC Voltage: 6V / 60V / 600V
-
Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
-
Capacitance: 6nF / 60nF / 600nF / 6µF / 60µF / 600µF / 4mF / 40mF
-
Frequency: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz
-
Temperature: -40℃~1000℃ / 0℉~1832℉
-
-
Non-Contact Voltage (NCV) Detection: Safely detects live voltage with a visible alarm.
-
Special Functions: Includes diode test, continuity alarm, data hold, duty cycle test, and REL test.
-
Clear Display: Large 3 5/6 digit LCD (max. 6000 counts) with clamp light and backlight for easy reading in dark environments.
-
Smart Power Management: Auto power-off after 15 minutes of inactivity and low battery indicator (below 2.4V).
-
Durable & Safe: CE standard design with full function protection and strong anti-interferential performance.
