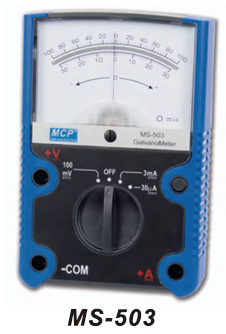

MS-503 Galvano Meter
BDT 3,802/-
Product Details
Brand: MCP
Model: MS-502
Country Of Origin: China
Feature
Sturdy, simple and extremely safe to use
LCR measuring (MS-508 only)
High accuracy and reliability
Combination of electronic and mechanical advantage
Single switch for range selection
Safety sockets and dual insulation
| Function: | Galvano Meter |
| DC Current Range: | 30uA ~ 3mA |
| DC Voltage Range: | 100mV |
| Accuracy: | 2.0% |
| Dimensions: | 160 x 105 x 44 mm |
| Weight: | 300g |
The MCP MS-503 Analog Galvanometer is a specialized, high-sensitivity instrument designed for detecting and measuring small electrical currents and voltages. As a dedicated Galvano Meter within the MS 500 Series, it excels in applications requiring precise null detection or the measurement of low-level DC signals. The MS-503 offers a DC current range of 30µA to 3mA and a DC voltage range of 100mV, with a consistent accuracy of 2.0%. It features a sturdy, simple design with dual insulation and safety sockets for maximum safety. The single-switch range selection ensures straightforward operation, and its compact, portable form factor (160 x 105 x 44 mm, 300g) makes it ideal for field and laboratory use.
MCP MS-503 Analog Galvanometer – High Sensitivity DC Current & Voltage Meter
Discover precise low-level signal detection with the MCP MS-503, a professional-grade analog galvanometer built for accuracy and durability. As part of the trusted MS 500 Series, this instrument is ideal for engineers, technicians, and educators who require reliable measurement of small DC currents and voltages in laboratory, field, or industrial settings.
