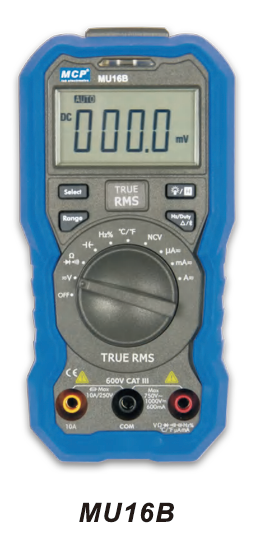

MU16B Bluetooth PORTABLE DIGITAL MULTIMETER
BDT 4,729/-
Product Details
Brand: MCP
Model: MU16B
Country Of Origin: China
Features:
Auto ranging
Auto/Manual Scale Switch
LCD Backlight
Diode Test
Sleep Mode
Auto Power-off
Continuity Test
Bluetooth Module for MU16B
Data Hold
Audion Test
True RMS
Input Protection
Relative Measurement
Low-battery Indicator
| Display: | 5999 counts |
| DCV Accuracy: | ±(0.5%+2 dig) |
| ACV Accuracy: | ±(0.8%+3 dig) |
| DCA Accuracy: | ±(0.8%+2 dig) |
| ACA Accuracy: | ±(1.0%+3 dig) |
| Resistance Accuracy: | ±(0.8%+2 dig) |
| Capacitance Accuracy: | ±(3.0%+3 dig) |
| Frequency Accuracy: | ±(0.8%+2 dig) |
| Temperature Accuracy: | ±(2.5%+3 dig) |
| Input Impedance: | ≥10MΩ |
| Sampling Rate: | 3 times/s |
| Battery: | 3V (1.5V x 2) AA |
| Dimensions: | 74 x 154 x 49 mm |
| Weight: | 290g |
The MCP MU16A / MU16B Portable Digital Multimeter is a professional-grade, auto-ranging testing instrument designed for comprehensive electrical diagnostics. It features a large 5999-count LCD display with backlight for clear readings in any environment. This True RMS multimeter offers an extensive range of measurement functions, including DC Voltage (up to 1000V), AC Voltage (up to 750V), DC/AC Current (up to 10A), Resistance (up to 60MΩ), Capacitance (up to 60mF), Frequency (up to 9.999MHz), Duty Ratio, and Temperature (-50℃~400℃ / -58℉~752℉). Key features include Auto/Manual scale switching, data hold, relative measurement, diode test, continuity test, and input protection. The MU16B model additionally includes a Bluetooth module for wireless data transfer. The meter also features a sleep mode, auto power-off, and a low-battery indicator. It is powered by two AA batteries and has a compact, ergonomic design (74 x 154 x 49 mm, 290g).
MCP MU16A / MU16B Portable Digital Multimeter – True RMS, Auto Ranging, Bluetooth (MU16B)
Test and troubleshoot with professional-grade precision using the MCP MU16A / MU16B, a feature-rich portable digital multimeter designed for accuracy, safety, and versatility. Ideal for electricians, engineers, and advanced DIY enthusiasts, this auto-ranging instrument delivers reliable readings for a wide range of electrical parameters.
Key Features & Benefits:
-
True RMS & Auto Ranging: Ensures accurate readings for AC/DC signals with automatic range selection for ease of use.
-
Comprehensive Measurement Functions:
-
DC Voltage: 600mV ~ 1000V
-
AC Voltage: 600mV ~ 750V
-
DC/AC Current: 600µA ~ 10A
-
Resistance: 600Ω ~ 60MΩ
-
Capacitance: 60nF ~ 60mF
-
Frequency: 9.999Hz ~ 9.999MHz
-
Duty Ratio: 0.1% ~ 99.9%
-
Temperature: -50℃ ~ 400℃ / -58℉ ~ 752℉
-
-
Bluetooth Module (MU16B): Enables wireless data transfer for remote monitoring and logging.
-
Special Functions: Includes diode test, continuity test, data hold, relative measurement, and input protection.
-
Clear Display: Large 5999-count LCD with backlight for easy reading in any lighting.
-
Smart Power Management: Features sleep mode, auto power-off, and low-battery indicator.
-
Durable & Ergonomic: Compact design (74 x 154 x 49 mm) and lightweight (290g) for comfortable handheld use.
