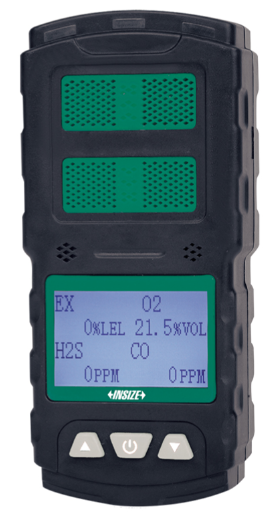

MULTI GAS DETECTOR
BDT 35,722/-
Product Details
Brand: INSIZE
Model: 0612-MG04
Country Of Origin: China
Features:
Customize more than 30 types of gases, such as NO, NH₃, Cl₂, etc.
Adjustable alarm level, alarm mode: sound, light, vibration.
Adjustable calibration level.
Sampling method: diffusion.
Self-test on startup.
Display with backlight.
Low battery indication.
| Gas | combustible gas-EX / O₂ / CO / H₂S |
| Range: combustible gas-EX / O₂ / CO / H₂S | 0~100%LEL / 0~30.0%VOL / 0~1000ppm / 0~100ppm |
| Resolution: | 1%LEL / 0.1%VOL / 1ppm / 1ppm |
| Accuracy: | ±5%FS / ±0.7%VOL / ±5ppm or ±10% / ±2ppm or ±10% |
| Response time: | ≤30s / ≤20s / ≤60s / ≤60s |
| Sensor lifetime* | 2 years / 5 years / 2 years / 2 years |
| Operation environment | -20°C~50°C, <95%RH, no condensation |
| Power supply | 3.7V rechargeable Li-ion battery, working time≥8h |
| Dimension (L×W×H) | 61×131×44mm |
| Net weight | 196g |
The Insize 0612-MG04 is a Multi Gas Detector designed for simultaneous monitoring of up to four gases in industrial safety applications. This compact instrument detects combustible gas (EX), oxygen (O₂), carbon monoxide (CO), and hydrogen sulfide (H₂S), with the capability to customize more than 30 types of gases, including NO, NH₃, and Cl₂. Its diffusion sampling method and self-test on startup ensure reliable operation, while the IP64 waterproof rating makes it suitable for harsh environments.
The MG04 features adjustable alarm levels with three alarm modes: sound, light, and vibration, ensuring alerts are noticed in any situation. The device includes an adjustable calibration level, a backlit display for clear visibility, and a low battery indication. Powered by a 3.7V rechargeable Li-ion battery, it provides at least 8 hours of working time. The detector measures 61×131×44mm and weighs 196g, and it comes with a calibration cap. Sensor lifetimes are 2 years for EX, CO, and H₂S, and 5 years for O₂ (depending on the working environment).
Four-Gas Monitoring with the Insize 0612-MG04 Multi Gas Detector
Ensure comprehensive gas safety with the Insize 0612-MG04 Multi Gas Detector. This advanced instrument simultaneously monitors combustible gas (EX), oxygen (O₂), carbon monoxide (CO), and hydrogen sulfide (H₂S), making it essential for confined space entry, industrial safety, and environmental monitoring. With customizable options for over 30 gases, an IP64 waterproof rating, and multiple alarm modes, it delivers reliable performance in demanding conditions.
Key Features and Benefits:
-
Four-Gas Detection: Simultaneously monitors EX (0~100%LEL), O₂ (0~30.0%VOL), CO (0~1000ppm), and H₂S (0~100ppm).
-
Customizable Options: More than 30 types of gases can be customized, including NO, NH₃, and Cl₂.
-
Multiple Alarm Modes: Adjustable alarm levels with sound, light, and vibration alerts.
-
Fast Response Times: ≤30s for EX, ≤20s for O₂, and ≤60s for CO and H₂S.
-
Reliable Operation: Diffusion sampling method with self-test on startup.
-
User-Friendly Display: Backlit screen with low battery indication.
-
Durable & Portable: IP64 waterproof rating, compact design (61×131×44mm), and lightweight (196g).
-
Long Battery Life: 3.7V rechargeable Li-ion battery provides ≥8 hours of working time.
-
Complete Kit: Includes calibration cap.
-
Extended Sensor Life: O₂ sensor lasts 5 years; EX, CO, and H₂S sensors last 2 years (depending on working environment).
