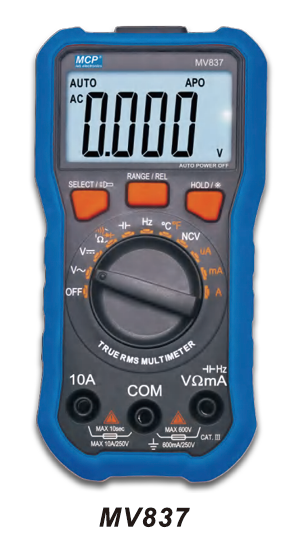

MV837 PORTABLE DIGITAL MULTIMETER
BDT 2,228/-
Product Details
Brand: MCP
Model: MV837
Country Of Origin: China
Features:
3 5/6 digit display
Auto Range, True RMS, Non-contact voltage detect (NCV) function
Lighting function, Backlight display, Diode test
Strong antimagnetic and anti-interferential performance, full function protection
Auto power off when there is no measurement in 15 minutes
Unit symbol display, easy to read, data hold
Large LCD display makes reading clear
New type holster, streamlined design, comfortable handle
| Display: | 3 5/6 digit LCD (Max. 6000 counts) |
| DCV Accuracy: | ±(0.5% +4) |
| ACV Accuracy: | ±(0.8% +6) |
| DCA Accuracy: | ±(1.0% +5) |
| ACA Accuracy: | ±(1.5% +5) |
| Resistance Accuracy: | ±(0.8% +1) |
| Capacitance Accuracy: | ±(2.5% +8) |
| Frequency Accuracy: | ±(0.5% +4) |
| Temperature Accuracy: | ±(1.0% +5) |
| Input Impedance: | 10MΩ |
| Sampling Rate: | 3 times/s |
| AC Frequency Response: | 40Hz-2kHz |
| Battery: | 3V, AAA X 2 |
| Meter Size: | 140 mm×72 mm×37 mm |
| Weight: | 195g (including battery) |
| Standard Accessories: | Test leads, battery, manual, TP01 temperature probe |
The MCP MV837 Portable Digital Multimeter is a comprehensive, high-precision testing instrument designed for professional and advanced electrical diagnostics. It features a large 3 5/6 digit LCD display (max. 6000 counts) with a backlight and lighting function for easy reading in any environment. This auto-ranging True RMS multimeter offers an extensive range of measurement functions, including DC Voltage (600mV~600V), AC Voltage (6V~600V), DC/AC Current (600µA~10A), Resistance (600Ω~60MΩ), Capacitance (60nF~6mF), Frequency (10Hz~100kHz), and Temperature (-40℃~1000℃ / 0℉~1832℉). It also includes specialized functions such as Non-Contact Voltage (NCV) detection, diode test, duty cycle measurement, continuity alarm, and data hold. Built for durability, it features strong antimagnetic and anti-interferential performance, full function protection, and a new type holster with a streamlined, comfortable handle. The meter includes an auto power-off function (after 15 minutes of inactivity) and a low battery indicator. It is powered by two AAA batteries and comes complete with test leads, battery, manual, and a TP01 temperature probe.
MCP MV837 Portable Digital Multimeter – True RMS, NCV, Temperature, Capacitance, 3 5/6 Digit Display
Test and troubleshoot with professional-grade precision using the MCP MV837, a feature-rich portable digital multimeter designed for accuracy, safety, and versatility. Ideal for electricians, engineers, and advanced DIY enthusiasts, this auto-ranging instrument delivers reliable readings for a wide range of electrical parameters.
Key Features & Benefits:
-
True RMS & Auto Range: Ensures accurate readings for AC/DC signals with automatic range selection for ease of use.
-
Comprehensive Measurement Functions:
-
DC Voltage: 600mV / 6V / 60V / 600V
-
AC Voltage: 6V / 60V / 600V
-
DC/AC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A
-
Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
-
Capacitance: 60nF / 600nF / 6µF / 60µF / 600µF / 6mF
-
Frequency: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz
-
Temperature: -40℃~1000℃ / 0℉~1832℉
-
-
Non-Contact Voltage (NCV) Detection: Safely detects live voltage without direct contact.
-
Special Functions: Includes diode test, duty cycle (1%~99%), continuity alarm, and data hold.
-
Clear Display: Large 3 5/6 digit LCD (61x28mm) with backlight and lighting function for easy reading in any lighting.
-
Durable & Ergonomic: Features a new type holster with a streamlined design and comfortable handle, plus strong antimagnetic and anti-interferential performance.
-
Smart Power Management: Auto power-off after 15 minutes of inactivity and low battery indicator (below 2.4V).
-
Full Function Protection: Built-in safety features for reliable operation.
