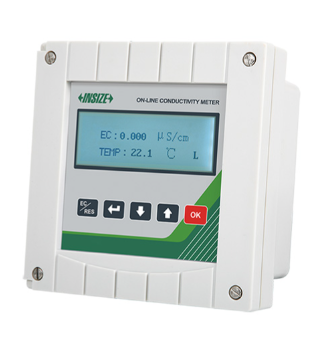

ON-LINE CONDUCTIVITY METER
BDT 1,769,823/-
Product Details
Brand: INSIZE
Model: 0415-EZ41
Country Of Origin: China
Features:
Suitable for water quality testing of surface water, sewage plant output, distilled seawater, pollution source waste, softened water, steam condensate, etc.
Wall-mounted instrument, flow-through or input electrode.
Optional conductivity electrodes with different conductivity ranges are available.
The meter can switch between conductivity and resistivity.
Upper and lower limit alarms can be set.
With power failure data protection.
Automatic temperature compensation.
Auto ranging.
Protection level: IP65.
| Conductivity: range |
0~10mS/cm, divided into six ranges (0.000~0.199)μS/cm, (0.20~1.99)μS/cm, (2.0~19.9)μS/cm, (20.0~199.9)μS/cm, (200~1.999)mS/cm, (2.00~10.00)mS/cm |
| resolution | 0.001/0.01/0.1μS/cm, 0.01/0.1mS/cm |
| accuracy | ±2.0%FS |
| Temperature: range | -10.0°C~120.0°C |
| resolution | 0.1°C |
| accuracy | ±0.5°C (at 0.0°C~60.0°C), ±1.0°C (other range) |
| Automatic temperature compensation range | -10.0°C~120.0°C |
| Temperature coefficient compensation range | (0~10)%/°C |
| Output signal | (4~20)mA |
| Operating environment | temperature: (-5~50)°C, relative humidity: ≤90% |
| Power supply | AC 220V, 50Hz |
| Hole-opening size | 140×140mm |
| Dimension (L×W×H) | 166×166×110mm |
| Weight | 2kg |
The Insize 0415-EZ41 is an On-Line Conductivity Meter designed for continuous water quality monitoring in industrial and environmental applications. Suitable for testing surface water, sewage plant output, distilled seawater, pollution source waste, softened water, and steam condensate, this wall-mounted instrument supports flow-through or input electrode configurations. It features a wide conductivity range of 0~10mS/cm divided into six ranges, with a resolution down to 0.001μS/cm and accuracy of ±2.0%FS. The meter can switch between conductivity and resistivity measurement modes, providing versatility for different monitoring requirements.
The EZ41 includes automatic temperature compensation from -10.0°C to 120.0°C and a temperature coefficient compensation range of (0~10)%/°C. It features user-settable upper and lower limit alarms and power failure data protection to ensure data integrity. The device offers a (4~20)mA output signal for integration with control systems. With an IP65 protection level, it is built for durability in harsh environments. The unit operates on AC 220V, 50Hz, has a hole-opening size of 140×140mm, and measures 166×166×110mm, weighing 2kg.
Continuous Water Quality Monitoring with the Insize 0415-EZ41 On-Line Conductivity Meter
Monitor water quality in real-time with the Insize 0415-EZ41 On-Line Conductivity Meter. Designed for industrial and environmental applications, this wall-mounted instrument provides continuous measurement of conductivity and resistivity in surface water, sewage plant output, distilled seawater, and steam condensate. With automatic temperature compensation, auto-ranging, and power failure data protection, it delivers reliable performance for critical monitoring systems.
Key Features and Benefits:
-
Wide Measurement Range: Conductivity from 0~10mS/cm across six ranges with resolution down to 0.001μS/cm.
-
High Accuracy: ±2.0%FS accuracy for conductivity and ±0.5°C for temperature (at 0.0°C~60.0°C).
-
Automatic Temperature Compensation: Covers -10.0°C~120.0°C for accurate readings across varying conditions.
-
Conductivity/Resistivity Switching: Versatile measurement modes to suit different applications.
-
Alarm Functions: User-settable upper and lower limit alarms for process control.
-
Power Failure Protection: Ensures data integrity during power interruptions.
-
Standard Output Signal: (4~20)mA output for integration with control systems.
-
Durable & Waterproof: IP65 protection level for harsh environments.
-
Wall-Mounted Design: Compact 166×166×110mm housing with a 140×140mm hole-opening size.
