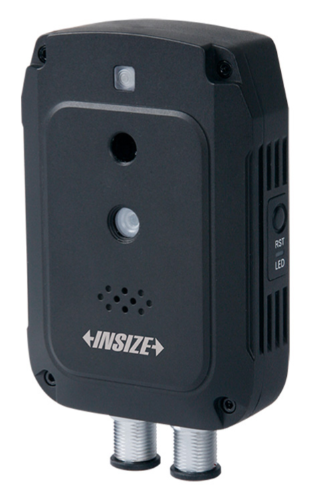

Online Infrared Thermal Imaging Camera
BDT 217,391/-
Product Details
Brand: INSIZE
Model: 0237-NC200
Country Of Origin: China
Features:
Suitable for electric power, electrical industry, mechanical industry, etc.
Adopt 256×192 infrared detector, together with 1920×1080 visible light sensor
Support real-time temperature measurement analysis, alarm setting, historical information query and export reports
Support various installation methods such as magnetic mounting, wall mounting, vertical mounting, hanging mounting and tripod mounting
Web-side control, no need other App or software
| Infrared image: detector type | unrefrigerated vanadium oxide, 7.5μm~14μm |
| Infrared resolution | 256×192@12μm |
| Thermal sensitivity/NETD | 45mK@30°C |
| Lens | 3.2mm, 56°×42° |
| Focusing mode | focus-free |
| Color palettes | 26: white hot, black hot, rainbow and so on |
| Featured function | detail enhancement, 2D/3D noise reduction, image flip, dual light fusion |
| Temperature measurement: measurement range | low: -20°C~150°C, high: 100°C~550°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Measurement target | up to 21 targets (spot, line, rectangle, polygon and circle) can be simultaneously measured |
| Measurement function | cold/hot spot tracking, full-screen point temperature measuring, query and export of information |
| Visible light: sensor type | 1/2.7" CMOS |
| Max. resolution | 1920×1080 |
| Min. illuminance | color: 0.005lux |
| Lens | 2.8mm, 65°×49° |
| Fill light | white light |
| Featured function | visible light gain control, 2D/3D noise reduction, backlight compensation, wide dynamic, strong-light photoinhibition, image flip, exposure compensation |
| Image: video compression | H.264 |
| Image format | JPEG |
| Protocol and storage: network protocol | IPv4/IPv6, HTTP, SMTP, RTSP, TCP, DHCP, ONVIF (automatic search device, RTSP video stream and device control), GB/T28181, MQTT |
| System function: language | Chinese/English |
| User management | max. 20 users with three levels of user accounts (root, admin and user) |
| Fault detection | network interrupt detection, IP conflict detection, illegal access, storage exception |
| Intelligent function | sound and light alarm |
| Interface: power interface | DC12V±25% |
| Network interface | 100M/1000M ethernet port, POE (802.3 at) |
| Aarm interface | 1 input and 1 output |
| Other interface | RS485 |
| Environmental parameter: operating environment | -30°C~60°C, ≤95%RH (non-condensing) |
| Protection | IP67, TVS 6000V lightning protection and surge protection |
| Physical parameter: power | 3.5W |
| Dimension (L×W×H) | 71×30×105mm |
| Weight | 300g |
The Insize 0237-NC200 is an advanced Online Infrared Thermal Imaging Camera designed for continuous, unmanned monitoring in electric power, electrical, and mechanical industries. Combining a 256×192 unrefrigerated vanadium oxide infrared detector with a 1920×1080 visible light sensor, it delivers dual-spectrum imaging with a thermal sensitivity of 45mK. The device supports real-time temperature measurement analysis, alarm setting, historical data queries, and report exports, making it a robust solution for critical infrastructure monitoring.
The camera features a wide measurement range of -20°C to 550°C with ±2°C or ±2% accuracy and can simultaneously measure up to 21 targets using spots, lines, rectangles, polygons, and circles. It offers 26 color palettes and advanced image processing functions including detail enhancement, 2D/3D noise reduction, and dual light fusion. Installation is highly flexible with support for magnetic, wall, vertical, hanging, and tripod mounting. The NC200 is controlled entirely via a web interface—no additional app or software is required. Built to withstand harsh environments, it carries an IP67 waterproof rating and TVS 6000V lightning protection.
Continuous Thermal Monitoring with the Insize 0237-NC200 Online Infrared Camera
Monitor critical equipment 24/7 with the Insize 0237-NC200 Online Infrared Thermal Imaging Camera. Engineered for industrial automation and predictive maintenance, this fixed-mount thermal camera combines a high-resolution 256×192 IR detector with a 1920×1080 visible light sensor for superior dual-spectrum imaging. Its web-based control system eliminates the need for proprietary software, allowing users to access real-time thermal data, set alarms, and export reports from any connected device.
Key Features and Benefits:
-
Dual-Spectrum Imaging: 256×192 IR detector paired with a 1920×1080 CMOS visible light sensor for comprehensive monitoring.
-
Wide Temperature Range: Measures -20°C to 550°C with ±2°C or ±2% accuracy (auto-switching between low and high ranges).
-
Extensive Analysis Capabilities: Simultaneously measures up to 21 targets (spot, line, rectangle, polygon, circle) with cold/hot spot tracking.
-
Advanced Image Processing: 26 color palettes, detail enhancement, 2D/3D noise reduction, image flip, and dual light fusion.
-
Flexible Installation: Supports magnetic, wall, vertical, hanging, and tripod mounting options.
-
Web-Based Control: No additional app or software required; access via standard web browser.
-
Rugged & Reliable: IP67 waterproof rating, TVS 6000V lightning protection, and surge protection for harsh environments.
-
Industrial Protocols: Supports ONVIF, RTSP, MQTT, and GB/T28181 for seamless integration.
