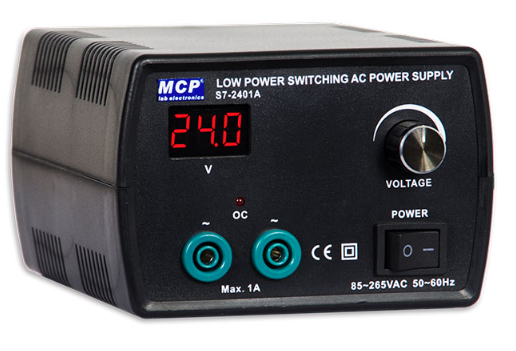

S7-2401A Voltage Adjustable LOW POWER SWITCHING AC POWER SUPPLY
BDT 10,184/-
Product Details
.Output voltage: 0~24Vrms
.Output current: 1A
.Output frequency: 50Hz, 60Hz (line tracing)
.Output accuracy: Voltage:±(0.5%+2 digits)@50Hz(≥2Vrms)
Frequency:1%
.Input voltage: 85~265VAC 50/60Hz
.Dimensions: 110(W)×75(H)×140(D)mm
.Weight: 350g
| Output voltage: | 0~24Vrms |
| Output current: | 1A |
| Output frequency: | 50Hz, 60Hz (line tracing) |
| Output accuracy: |
Voltage:±(0.5%+2 digits)@50Hz(≥2Vrms) Frequency:1% |
| Input voltage: | 85~265VAC 50/60Hz |
| Dimensions: | 110(W)×75(H)×140(D)mm |
| Weight: | 350g |
.Output voltage: 0~24Vrms
.Output current: 1A
.Output frequency: 50Hz, 60Hz (line tracing)
.Output accuracy: Voltage:±(0.5%+2 digits)@50Hz(≥2Vrms)
Frequency:1%
.Input voltage: 85~265VAC 50/60Hz
.Dimensions: 110(W)×75(H)×140(D)mm
.Weight: 350g
The S7‑2401A is a versatile and compact low power switching AC power supply designed for laboratories, educational setups, and testing environments. It delivers an adjustable output voltage range of 0 to 24 Vrms with a stable output current of 1A, making it suitable for precision experiments and training applications. With selectable output frequencies of 50 Hz and 60 Hz (line tracing) and accuracy rated at ±(0.5% + 2 digits) at 50 Hz for voltages ≥ 2 Vrms, along with 1% frequency accuracy, this unit ensures reliable and consistent performance. Supporting a wide input voltage range of 85 to 265 VAC at 50/60 Hz, the S7‑2401A is globally compatible. Its compact dimensions of 110 × 75 × 140 mm and lightweight 350 g design make it easy to integrate into any workspace, offering portability without compromising functionality. Built for durability and precision, the S7‑2401A is the ideal choice for educators, engineers, and hobbyists seeking dependable AC power supply solutions.
