Sound Level Meter (Advanced Type)
BDT 124,665/-
Product Details
Brand: INSIZE
Model: 0011-FA25
Country Of Origin: China
Features:
Integral function: 1s~24h (adjustable)
Wide frequency range, large dynamic range, low background noise
Parallel time weight and frequency weight
Single range without shifting
Software is included: on-line monitoring, data storage
| Accuracy | IEC 61672-1:2013 class 2 |
| Microphone | 1/2 inch prepolarized condenser microphone |
| Measuring range |
25dB (A)~141dB (A); 35dB (C)~141dB (C); 50dB (Z)~141dB (Z) other frequency linear ranges: 31.5Hz: 26dB (A)~101dB (A); 12.5kHz: 25dB (A)~136dB (A) |
| Frequency | 20Hz~12.5kHz |
| Self-generated electrical noise | <17dB (A), <23dB (C), <33dB (Z) |
| Frequency weighting | parallel A, C, Z weightings |
| Time weighting | parallel F (Fast), S (Slow), I (Impulse) weightings |
| Measuring function | Lp, Leq,t, Leq,T, Lmax, Lmin, Lpeak, SEL |
| Integral time | 1s~24h (adjustable) |
| Start mode | button/dock/limit/interval |
| Power setting | power on or off regularly |
| Data storage |
4MB FLash RAM 4 sets of parameter templates, 128 measurement point names; 64 calibration records |
| Language | Chinese, English, Portuguese |
| Power | <80mA/5V |
| Power supply |
4ÃAAA batteries (for 10 hours working) AC/DC adapter: 5V/2A |
| Operation condition |
temperature: -10°C~50°C humidity: 25%RH~90%RH, non-condensing pressure: 65kPa~108kPa |
| Dimension | 230Ã69Ã26mm |
| Weight | 180g |

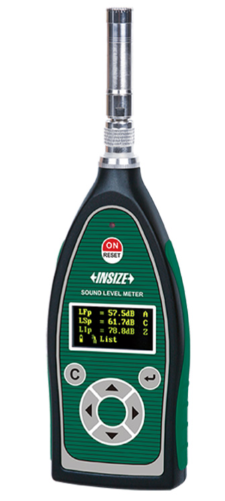

The Insize 0011-FA25 is an advanced Class 2 Sound Level Meter designed for precise acoustic measurement and environmental noise monitoring. Compliant with IEC 61672-1:2013 Class 2 standards, this device features a 1/2-inch prepolarized condenser microphone and a wide measuring range of 25dB to 141dB. It supports parallel A, C, and Z frequency weightings alongside F, S, and I time weightings, allowing for simultaneous data capture without the need to switch settings during measurement.
Equipped with a 4MB Flash RAM, the meter can store extensive data, including 128 measurement point names and 64 calibration records. The included PC software enables real-time monitoring via USB, displaying data in bar chart or line chart formats, with the capability to export directly to Excel. The device is powered by four AAA batteries, providing up to 10 hours of operation, or via an AC/DC adapter. Ideal for industrial, environmental, and construction noise assessments, the 0011-FA25 offers reliability, portability, and comprehensive data logging capabilities.
Professional Noise Monitoring with the Insize 0011-FA25 Sound Level Meter
When accuracy and reliability are paramount, the Insize 0011-FA25 Advanced Sound Level Meter delivers. Engineered to meet IEC 61672-1:2013 Class 2 standards, this high-performance instrument is the ideal solution for environmental noise monitoring, industrial safety compliance, and acoustic research.
Key Features and Benefits:
-
Wide Dynamic Range: Measures from 25dB(A) to 141dB(A), covering a broad spectrum of sound environments from quiet libraries to loud construction sites.
-
Parallel Weighting: Simultaneously captures A, C, and Z frequency weightings and Fast, Slow, and Impulse time weightings. This eliminates the need for multiple measurements, saving time and ensuring data consistency.
-
Advanced Data Logging: With 4MB Flash RAM, store up to 128 measurement point names and 64 calibration records. The adjustable integral time (1s to 24h) makes it suitable for both short-term spot checks and long-term monitoring.
-
Real-Time PC Analysis: Includes powerful software for real-time monitoring via USB. Visualize data with bar charts or line graphs and export seamlessly to Excel for detailed reporting.
-
Portable and Durable: Lightweight at just 180g and powered by 4x AAA batteries (10-hour runtime), it is designed for field use in diverse conditions (-10°C to 50°C).
