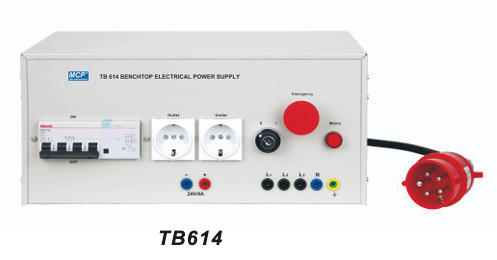

TB614 AC MOTOR POWER SUPPLY
BDT 20,397/-
Product Details
Brand: MCP
Model: TB614
Country Of Origin: China
Features:
Output separate, isolative from mains
General control with key-locked switch
Protected with high sensitivity T.M.C.B. and emergency pushbutton
4mm safety socket for connection
Power supply cable with three-phase plug
| Type: | AC Motor Power Supply (Isolated) |
| AC Thermal-Magnetic Circuit Breaker: | 4P/16A/400V/30mA |
| Three-Phase AC Output: | 400V/3A+N and PE |
| AC Outlet: | 230V/4A (2 universal single-phase sockets) |
| DC Output: | 24V/4A |
| Dimensions: | 450Ã200Ã280 mm |
| Weight: 1 | 6kg |
| Power Supply: | 3Ã400VAC/N/PE/50Hz |
| Safety Sockets: | 4mm |
| Phase Indicators: | L1, L2, L3, N, PE |
The MCP TB614 AC Motor Power Supply is a heavy-duty benchtop electrical power unit designed to provide safe, isolated power for AC and DC motor testing and educational applications. Its key feature is an output that is separate and isolative from the mains, ensuring maximum safety and protection for both the user and the equipment. It features a comprehensive control panel with a key-locked general switch, a high-sensitivity thermal-magnetic circuit breaker (T.M.C.B.), and an emergency pushbutton. The unit offers a three-phase AC output of 400V/3A+N and PE, two universal single-phase sockets providing 230V/4A, and a dedicated DC output of 24V/4A. Connections are made via 4mm safety sockets, and the unit includes a power supply cable with a three-phase plug. It features indicator lights for L1, L2, L3, N, and PE phases. The TB614 measures 450 x 200 x 280 mm, weighs 16kg, and operates on a power supply of 3×400VAC/N/PE/50Hz (with other voltages available upon request). It is ideal for industrial, commercial, and advanced educational motor testing environments.
MCP TB614 AC Motor Power Supply – Isolated Benchtop Three-Phase & DC Power Unit
Power your AC and DC motor testing safely and efficiently with the MCP TB614, a heavy-duty benchtop electrical power supply featuring an output that is separate and isolative from the mains. As a key motor accessory, it is ideal for engineers, technicians, and educators working with motor control, electrical training, and industrial test rigs requiring maximum safety.
Key Features & Benefits:
-
Isolated Output: The output is separate and isolative from the mains, providing maximum safety and protection for users and equipment.
-
Safe General Control: Features a key-locked switch for secure operation and prevention of unauthorized use.
-
Comprehensive Protection: Protected with a high-sensitivity thermal-magnetic circuit breaker (T.M.C.B.) and an emergency pushbutton.
-
Three-Phase AC Output: Provides 400V/3A+N and PE for powering three-phase motors.
-
Single-Phase AC Outlets: Includes two universal single-phase sockets providing 230V/4A for auxiliary equipment.
-
DC Output: Provides a dedicated 24V/4A DC output for DC motor testing and control applications.
-
Safety Connections: Equipped with 4mm safety sockets for secure and reliable wiring.
-
Clear Phase Indication: Features indicator lights for L1, L2, L3, N, and PE phases.
-
Complete Power Cable: Includes a power supply cable with a three-phase plug.
-
Robust Ratings: AC thermal-magnetic circuit breaker rated at 4P/16A/400V/30mA.
-
Heavy-Duty & Stable: Measures 450 x 200 x 280 mm and weighs 16kg for stable benchtop operation.
-
Flexible Power Supply: Operates on 3×400VAC/N/PE/50Hz (or other voltages upon request).
