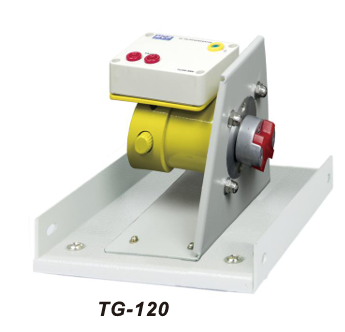

TG-120 DC TACHOGENERATOR
BDT 32,898/-
Product Details
Brand: MCP
Model: TG-120
Country Of Origin: China
Main Advantages
Accurate DC voltage proportional to speed
Designed for 150W motors
Compact and robust construction
Easy wiring with terminal box
Reliable 0~160VDC output
High max speed of 6000rpm
Suitable for education and research
| Type: | DC Tachogenerator |
| Output Voltage: | 0~160VDC |
| Max. Current: | 200mA |
| Power: | 32W |
| Max. Speed: | 6000rpm |
| Shaft Height: | 63mm |
| Suitable Motor: | 150W |
| Dimensions: | 170Ã130Ã165 mm |
The MCP TG-120 DC Tachogenerator is a precision instrument designed for accurate motor speed measurement within a comprehensive motor speed measuring system. As part of the TG Series, it delivers a continuous DC voltage output that is directly proportional to the rotating speed of the motor. The TG-120 is specifically designed for use with motors up to 150W, featuring a 63mm shaft height and compact dimensions of 170 x 130 x 165 mm. It operates with an output voltage of 0~160VDC, a maximum current of 200mA, and a power rating of 32W, with a maximum speed capability of 6000rpm. The unit features a sturdy mounting base with a terminal box (including red buttons) for straightforward wiring and installation.
MCP TG-120 DC Tachogenerator – Motor Speed Measuring System for 150W Motors
Measure motor speed with precision using the MCP TG-120, a DC tachogenerator designed to deliver a continuous DC voltage proportional to the rotating speed of the motor. As a key model in the TG Series, this instrument is ideal for engineers, technicians, and educators working with motor control, feedback systems, and speed measurement applications.
Key Features & Benefits:
-
Proportional DC Output: Delivers a continuous DC voltage (0~160VDC) directly proportional to the motor's rotating speed for accurate speed measurement.
-
Reliable Performance: Features a maximum current of 200mA, power rating of 32W, and a high maximum speed of 6000rpm.
-
Optimized for 150W Motors: Specifically designed for use with motors up to 150W.
-
Compact & Robust Design: Features a 63mm shaft height and dimensions of 170 x 130 x 165 mm for space-constrained installations.
-
Easy Wiring: Equipped with a terminal box featuring red buttons for straightforward connection.
-
Part of a Versatile Series: The TG Series offers models for 300W, 600W, and 1000W motors to suit various applications.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
