THERMOCOUPLE THERMOMETER (FOUR CHANNELS)
BDT 36,735/-
Product Details
Brand: INSIZE
Model: 0323-CT47
Country Of Origin: China
Features:
Unit: °C/°F/K
Channels are compatible with 7 types of thermocouples K, J, T, E, R, S and N
MAX/MIN/AVG/DIF mode
72000 data storage
Offset value compensation
Data hold function
Display backlight
Over range indicator
Battery level display
Automatic power off
Built-in Bluetooth, mobile APP is included
Computer software is included
| Thermocouple type | J/K/T/E/R/S/N |
| Temperature range (electrical signal) |
K: -200°C~1372°C J: -200°C~1200°C T: -200°C~400°C E: -150°C~1000°C R: 300°C~1767°C S: 300°C~1767°C N: -200°C~1300°C |
| Temperature accuracy (electrical signal) | ±(0.2%· |
| Temperature resolution | 0.1°C (<1000°C); 1°C (≥1000°C) |
| Repeatability | ±(0.1%· |
| Response time | 500ms |
| Logging interval | 1s~24h (adjustable) |
| Memory capacity | 72000 |
| Data transmission T | YPE-C USB, Bluetooth |
| Power frequency anti-interference | 50/60Hz |
| Input protection | 60Vmax |
| Drop proof | 1m |
| Power supply |
3×AAA alkaline batteries, working time>30h; TYPE-C USB (only be connected to a PC power) |
| Operation environment |
temperature: -10°C~50°C humidity: <90%RH (non-condensing) |
| Storage environment |
temperature: -20°C~60°C humidity: <90%RH (non-condensing) |
| Dimension (L×W×H) | 180×63×38mm |
| Weight | 350g (including batteries) |

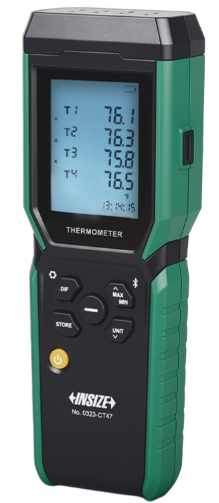

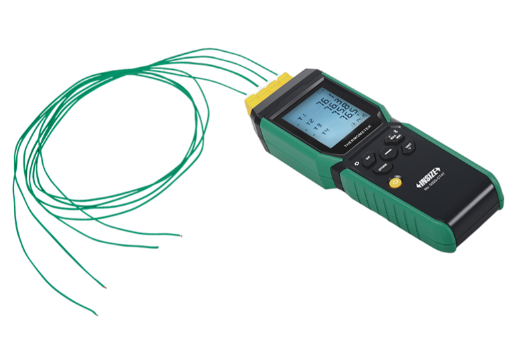

The Insize 0323-CT47 is an advanced four-channel Thermocouple Thermometer designed for comprehensive temperature monitoring and data logging. It is compatible with seven thermocouple types (K, J, T, E, R, S, and N), offering a wide temperature range from -200°C to 1767°C. The device features a 72000-point memory capacity and an adjustable logging interval from 1 second to 24 hours, making it ideal for long-term monitoring in industrial, laboratory, and HVAC applications.
Equipped with both TYPE-C USB and Bluetooth connectivity, the CT47 allows for real-time data transmission to a PC or mobile device (mobile app included). It offers multiple measurement modes including MAX/MIN/AVG/DIF, offset value compensation, and a data hold function. The device features a backlit display, over-range indicator, and battery level display. Built for durability, it has a 1m drop proof rating and operates on three AAA alkaline batteries providing over 30 hours of working time.
Four-Channel Precision Temperature Logging with the Insize 0323-CT47 Thermometer
Monitor multiple temperature points simultaneously with the Insize 0323-CT47 Four-Channel Thermocouple Thermometer. Designed for professionals who require versatility and accuracy, this advanced instrument supports seven thermocouple types (K, J, T, E, R, S, N) and features a massive 72,000-point data storage capacity. With Bluetooth and USB connectivity, it seamlessly integrates into modern data logging systems for industrial process control, laboratory research, and HVAC diagnostics.
Key Features and Benefits:
-
Four-Channel Input: Measure up to four separate temperature points simultaneously with included K-type thermocouples.
-
Multi-Thermocouple Compatibility: Supports K, J, T, E, R, S, and N type thermocouples for maximum flexibility.
-
Extensive Data Storage: 72,000-point memory with adjustable logging intervals from 1 second to 24 hours.
-
Wireless & Wired Connectivity: Built-in Bluetooth for mobile app monitoring and TYPE-C USB for PC connection.
-
Comprehensive Analysis: Features MAX/MIN/AVG/DIF modes, offset value compensation, and data hold.
-
Rugged & Reliable: 1m drop proof, 60Vmax input protection, and 50/60Hz power frequency anti-interference.
-
Long Battery Life: Operates on 3×AAA batteries for over 30 hours of continuous use.
-
Clear Display: Backlit screen with over-range and battery level indicators.
