Thermocouple Thermometers (Record Type)
BDT 26,958/-
Product Details
Brand: INSIZE
Model: 0327-DL31
Country Of Origin: China
Features:
Unit: °C/°F
Support thermocouple type K/J/T
MAX/MIN/AVG mode
20000 data storage
Graphical display
Display backlight
Multi-point calibration function
Temperature upper and lower limit alarm function
Data hold function
Battery level display
Automatic power off
Computer software is included
| Channel number | 1 |
| Weight | 233g |
| Thermocouple type | K/J/T |
| Temperature range |
type K: -200°C~1370°C type J: -200°C~1200°C type T: -200°C~400°C |
| Temperature accuracy* | ±(0.3%·|t|+0.40)°C |
| Temperature resolution | 0.01°C |
| Sampling rate | 2 times/sec |
| Logging interval | 1s~86399s (adjustable) |
| Memory capacity | 20000 |
| Data transmission | Micro USB |
| Display | dot matrix LCD display with backlight |
| Operation temperature | -10°C~+50°C (non-condensing) |
| Storage temperature | -20°C~+60°C (without battery) |
| Power supply | 3×AAA alkaline batteries |
| Dimension | 174×73×40mm |

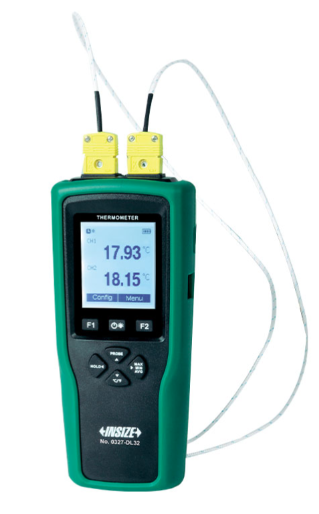

The Insize 0327 Series is a line of record-type Thermocouple Thermometers designed for advanced temperature monitoring and data logging. Available in single-channel (0327-DL31) and dual-channel (0327-DL32) models, both support K, J, and T type thermocouples with a wide measurement range of up to 1370°C. The dot matrix LCD display with backlight offers graphical display capabilities, making it easy to visualize temperature trends in real-time.
These instruments feature a 20,000-point memory capacity with an adjustable logging interval from 1 second to 86,399 seconds, suitable for both short-term and long-term monitoring. Key functions include MAX/MIN/AVG modes, multi-point calibration, temperature upper and lower limit alarms, data hold, and battery level display. Data can be transmitted via Micro USB to the included computer software for analysis. With an IP52 waterproof rating and a durable design (174×73×40mm), they are ideal for industrial, laboratory, and HVAC applications.
Advanced Temperature Data Logging with the Insize 0327 Series Thermocouple Thermometers
Capture and analyze temperature data with precision using the Insize 0327 Series Record-Type Thermocouple Thermometers. Available in single-channel (DL31) and dual-channel (DL32) configurations, these advanced instruments support K, J, and T type thermocouples and feature a graphical dot matrix LCD display. With a 20,000-point memory and adjustable logging intervals, they are perfect for long-term monitoring in industrial processes, laboratories, and HVAC systems.
Key Features and Benefits:
-
Multi-Thermocouple Support: Compatible with K, J, and T type thermocouples for versatile temperature measurement.
-
Wide Temperature Range: Measures up to 1370°C (K-type) with high accuracy of ±(0.3%·|t|+0.40)°C.
-
Graphical Display: Dot matrix LCD with backlight for clear data visualization and trend monitoring.
-
Extensive Data Storage: 20,000-point memory with adjustable logging intervals from 1s to 86,399s.
-
Comprehensive Functions: Includes MAX/MIN/AVG modes, multi-point calibration, upper/lower limit alarms, data hold, and battery level display.
-
Data Transmission: Micro USB connectivity with included computer software for data analysis.
-
Rugged & Portable: IP52 waterproof rating, powered by 3×AAA batteries, with a compact 174×73×40mm design.
-
Single or Dual Channel: Choose the 0327-DL31 (1 channel) or 0327-DL32 (2 channels) based on your application needs.
