TM-10000 TACHOMETER
BDT 9,431/-
Product Details
Brand: MCP
Model: TM-10000
Country Of Origin: China
Main Advantages
Clear digital RPM readout
Works with DC tachogenerators
Wide 0~160VDC input range
Bright red LED display
Compact benchtop design
Easy calibration with TACHO button
Suitable for education and research
| Type: | Tachometer |
| Input Voltage: | 0~160VDC |
| Display: | Max. 6000rpm |
| Dimensions: | 170 x 135 x 70 mm |

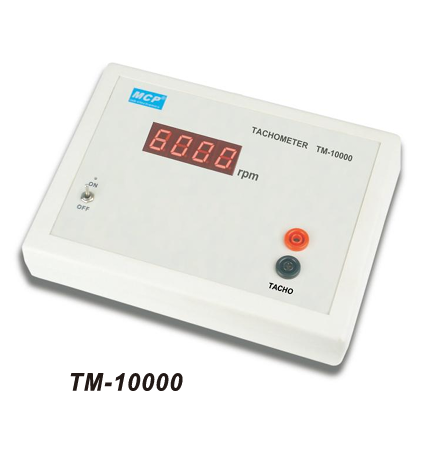

The MCP TM-10000 Tachometer is a precision digital instrument designed to display the rotating speed of motors in RPM. It works by converting the voltage output from a DC tachogenerator into a clear, easy-to-read digital readout. The TM-10000 accepts an input voltage of 0~160VDC and provides a maximum display of 6000rpm. It features a bright red LED display for clear visibility and includes a TACHO button and adjustment knob for calibration and control. The unit has a compact, benchtop-friendly design with dimensions of 170 x 135 x 70 mm. It is ideal for use with MCP's TG Series tachogenerators in motor speed measurement, feedback systems, and educational applications.
MCP TM-10000 Tachometer – Digital RPM Display for DC Tachogenerators
Monitor motor speed with precision using the MCP TM-10000, a digital tachometer designed to display the rotating speed of motors in RPM by converting the voltage output of a DC tachogenerator. Ideal for engineers, technicians, and educators working with motor control, feedback systems, and speed measurement, this instrument delivers clear, reliable readings.
Key Features & Benefits:
-
Clear Digital Display: Features a bright red LED display for easy-to-read RPM measurements.
-
Wide Input Range: Accepts an input voltage of 0~160VDC from compatible DC tachogenerators.
-
High RPM Display: Provides a maximum display of 6000rpm.
-
Easy Calibration & Control: Includes a TACHO button and adjustment knob for straightforward setup and calibration.
-
Compact Design: Benchtop-friendly dimensions of 170 x 135 x 70 mm.
-

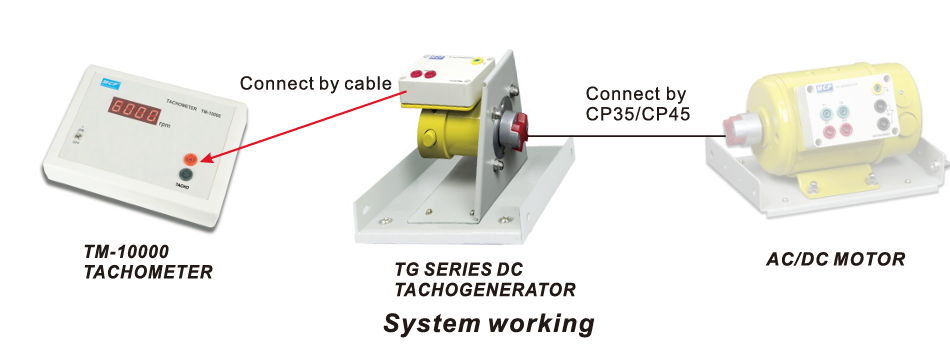

System Compatibility: Designed to work seamlessly with MCP's TG Series tachogenerators.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
