TM1000-1500S THREE-PHASE SYNCHRONOUS MOTOR/GENERATOR
BDT 81,150/-
Product Details
Brand: MCP
Model: TM1000-1500S
Country Of Origin: China
Main Advantages
Dual motor/generator operation
Synchronous design for precise speed
DC-excited rotor for power factor control
Dual voltage 230V/400V compatibility
Stable 700W output
Mobile base with casters
Suitable for education and research
| Machine Type: | Three-Phase Synchronous Motor/Generator |
| Voltage: | 230V/400V |
| Current: | 5A |
| Frequency: | 50Hz |
| Rotor Voltage: | 24VDC |
| Rotor Current: | 2.6ADC |
| Output Power: | 700W |
| Rotate Speed: | 1500rpm |
| Shaft Height: | 95mm |
| Dimensions: | 360 x 180 x 250 mm |
| Weight: | 13kg |

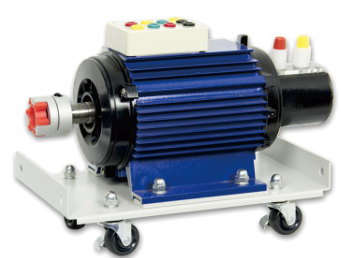

The MCP TM1000-1500S Three-Phase Synchronous Motor/Generator is a versatile, industrial-grade machine designed for both motor and generator operation. Ideal for industrial, commercial, and educational applications, it features synchronous construction with a DC-excited rotor for precise speed control and power factor correction. The TM1000-1500S operates on a three-phase voltage of 230V/400V at 50Hz, drawing 5A, with a rotor excitation of 24VDC and 2.6ADC. It delivers a stable output power of 700W and operates at a synchronous rotate speed of 1500rpm. The unit features a 95mm shaft height and dimensions of 360 x 180 x 250 mm, weighing 13kg. It is mounted on a base with casters for easy mobility and includes a terminal box with color-coded control buttons for easy operation.
MCP TM1000-1500S Three-Phase Synchronous Motor/Generator – 700W, 1500rpm, 230V/400V
Power your equipment with precision and versatility using the MCP TM1000-1500S, a three-phase synchronous motor/generator designed for reliable performance in both motoring and generating modes. Ideal for industrial, commercial, and educational applications, this machine combines synchronous construction with a mobile, durable design.
Key Features & Benefits:
-
Dual Motor/Generator Operation: Functions as both a synchronous motor and an alternator, providing versatility for a wide range of applications.
-
Synchronous Design: Operates at a constant synchronous speed of 1500rpm for precise speed control and power factor correction.
-
DC-Excited Rotor: Features a 24VDC, 2.6ADC rotor excitation for adjustable power factor and voltage regulation.
-
Dual Voltage Compatibility: Operates on 230V/400V at 50Hz, drawing 5A for flexible installation.
-
Stable Output: Delivers 700W of output power with high efficiency.
-
Mobile & Robust Design: Features a 95mm shaft height, dimensions of 360 x 180 x 250 mm, a weight of 13kg, and is mounted on a base with casters for easy mobility.
-
Easy Operation & Wiring: Equipped with a terminal box featuring color-coded control buttons (Red, Yellow, Blue, Green, Black) for straightforward connection and control.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
