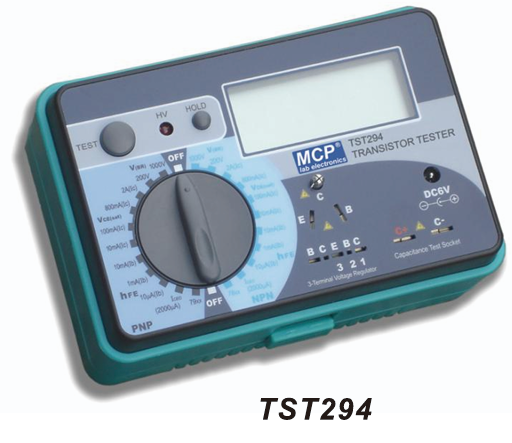

TST294 TRANSISTOR TESTER
BDT 5,326/-
Product Details
Brand: MCP
Model: TST294
Country Of Origin: China
Features:
Various semiconductor DC parameters transistor, diode, triac, FET
Capacitor withstand voltage
Varistor protection voltage
Electrical appliance insulation
78 & 79 series voltage regulator
Neon bulb and lamp starting voltage
AC voltage test
| Breakdown Voltage Range: | 200V / 1000V |
| VCE(sat) Range: | 0~6.00V |
| hFE Range: | 0~1999 |
| ICEO Range: | 0~1999ÂĩA |
| Voltage Regulation: | 78XX/79XX (0~24.0V) |
| Power Source: | 1.5V AA battery x4 or 6VDC/2A |
| Dimensions: | 150Ã70Ã100mm |
| Weight: | 670g |
The MCP TST294 Transistor Tester is a versatile, professional-grade instrument designed for comprehensive testing of various semiconductor components and electrical parameters. It is ideal for electronics engineers, technicians, and hobbyists working with circuit design, repair, and maintenance. The TST294 measures a wide range of DC parameters for transistors, diodes, triacs, and FETs, including breakdown voltage (V(BR)), collector-emitter saturation voltage drop (VCE(sat)), DC current gain (hFE), and reverse leakage current (ICEO). Additionally, it tests capacitor withstand voltage, varistor protection voltage, electrical appliance insulation, 78 & 79 series voltage regulators, and neon bulb/lamp starting voltage, plus AC voltage. Key specifications include a breakdown voltage range up to 1000V, VCE(sat) resolution of 0.01, hFE up to 1999, and ICEO up to 1999µA. The device is powered by four 1.5V AA alkaline batteries or a 6VDC/2A power supply, measures 150 x 70 x 100 mm, and weighs 670g.
MCP TST294 Transistor Tester – Semiconductor, Diode, Triac, FET & Capacitor Tester
Test semiconductor components and electrical parameters with precision using the MCP TST294, a professional-grade transistor tester designed for versatility and accuracy. Ideal for electronics engineers, technicians, and hobbyists, this instrument is a comprehensive tool for circuit design, troubleshooting, and maintenance.
