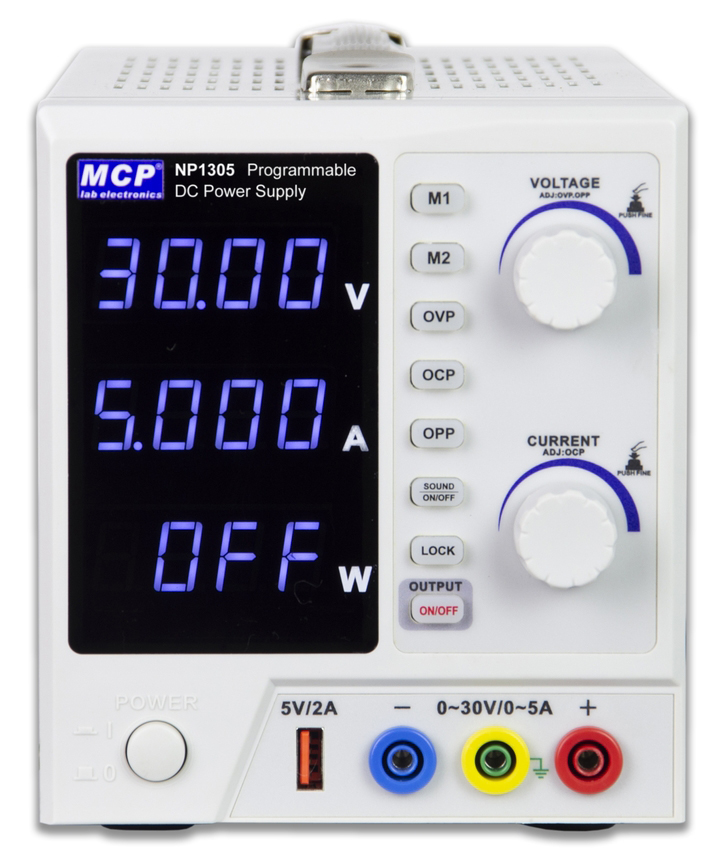

SINGLE OUTPUT ADJUSTABLE DC POWER SUPPL
BDT 11,760/-
BDT 12,000/-
Product Details
Features
. Output On/Off function
. Constant voltage and constant current
. Max. 10mV/1mA high resolution
. USB type A and type C output (5V/2A)
. Over voltage, over current and over power triple safety protiction
. Output voltage, current and power display
. Data call and store function
. PC control software supported (NP series only)
| Specifications |
Line regulation: CV 1×10-4+3mV, CC 1×10-3+3mA , USB output: 5% Load regulation: CV 1×10-4±3mV, CC 1×10-3±5mA , USB output: 4% Ripple & noise: CV≤1mVrms, CC≤3mArms, USB output: 100mVp-p Display accuracy: Voltage: ± (0.1%Rdg+2digits) (NP11003, NP12001) Voltage: ± (0.01%Rdg+2digits) (NP1303, NP1305, NP13010, NP13020) Current: ± (0.1%Rdg+2digits) Power: ± (0.2%Rdg+2digits) Input Voltage: 110~127VAC±10% 60Hz, 220~240VAC±10% 50Hz, Switchable |
Specifications
Line regulation: CV 1×10-4+3mV, CC 1×10-3+3mA , USB output: 5%
Load regulation: CV 1×10-4±3mV, CC 1×10-3±5mA , USB output: 4%
Ripple & noise: CV≤1mVrms, CC≤3mArms, USB output: 100mVp-p
Display accuracy: Voltage: ± (0.1%Rdg+2digits) (NP11003, NP12001)
Voltage: ± (0.01%Rdg+2digits) (NP1303, NP1305, NP13010, NP13020)
Current: ± (0.1%Rdg+2digits)
Power: ± (0.2%Rdg+2digits)
Input Voltage: 110~127VAC±10% 60Hz, 220~240VAC±10% 50Hz, Switchable
