BXS150 RHEOSTAT
BDT 6,717/-
Product Details
Brand: MCP
Model: BXS150
Country Of Origin: China
Features
-
100 scale division to show the resistance setting
-
Enclosed in robust sheet metal cover
-
Good linearity
-
Sliding contact of copper graphite
| Power VA | 160 |
| Resistance (Ω) / Max. Current |
10Ω 4A 33Ω 2.2A 100Ω 1.25A 330Ω 0.7A 1000Ω 0.4A 3300Ω 0.22A |
| Dimensions (W×H×D) | 285×140×95mm |
| Ceramic Pipe Diameter | 47mm |
| Weight (kg) | 1.8 |
| Max. Working Voltage: | 380VAC, 400VDC |
| Resistance tolerance: | ±10% |
| Insulation resistance: | >3×10⁹Ω |
| Earthing resistance: | <0.1Ω |

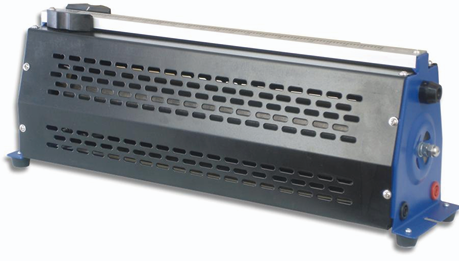

The BXS Series Rheostat is a high‑quality adjustable resistor designed for precise control of current and voltage in electrical circuits. Built with a rugged sheet metal enclosure and copper graphite sliding contacts, it offers durability and smooth performance. Available in multiple models (BXS 150, BXS 300, BXS 600), the series covers a wide range of resistance values and current ratings, making it suitable for both low‑power and high‑power applications. With excellent insulation resistance, low earthing resistance, and clear scale markings, the BXS rheostat is widely used in laboratories, schools, and industrial environments for testing, training, and circuit regulation.
The BXS Series Rheostat is a robust and reliable variable resistor designed for educational, laboratory, and industrial applications. Enclosed in a durable sheet metal cover with copper graphite sliding contacts, it ensures smooth linear adjustment and long service life. With models ranging from 150VA to 640VA, the series supports resistance values from 1.6Ω to 10kΩ and currents up to 20A. Featuring clear 100‑scale division markings, excellent insulation resistance, and low earthing resistance, the BXS rheostat is ideal for experiments, testing, and precise control of electrical circuits.
